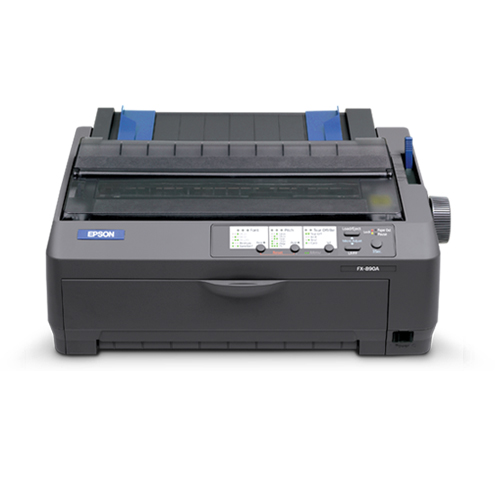

Printer SIDM EPSON (FX-890A) Impact
RP. 5,800,000
RP. 5,665,000
9-pin serial impact dot matrix, 128 KB, 8.5" width, Windows 95,98,2000,Me,XP and NT 4.0
Printing Method impact dot matrix
Print Direction Bidirectional logic seeking for text and graphics printing. Unidirectional text or graphics printing can be selected using software commands.
Print Speed
  • Ultra Speed Draft: 680 cps (12 cpi); 566 cps (10 cpi)
  • High Speed Draft: 559 cps (10 cpi)
  • Draft: 419 cps (10 cpi)
  • Near Letter Quality: 104 cps (10 cpi)
Character Sets
  • 13 character tables
  • 13 international character sets
Forms Continuous multipart, original plus 6 carbonless copies, 1 + 6 copies with pull tractor, maximum thickness .018"
Envelopes
  • No. 6 envelopes: 6.5" x 3.6"
  • No. 10 envelopes: 9.5" x 4.1"
Width
  • Single sheets: 3.9" to 10.1"
  • Continuous: 4" to 10"
  • Cut-sheet feeder: 7.2" to 8.5"
Length
  • Single sheets: 3.9" to 14.3"
  • Continuous: 4" to 22"
  • Cut-sheet feeder: 10.1" to 14"
  • Labels: Minimum: 2.5" x 0.94"
Roll paper 8.5" width
Paper Feed Speed
  • 62 millisecond per 1/6"
  • 5" per second continuous feed
Paper Path
  • Manual insertion: Front or rear in, top out
  • Cut sheet feeder: Top in, top out
  • Tractor: Front, rear or bottom in, top out
  • Pull push tractor: Front or rear in, top out
Software Drivers

Windows 95, 98, 2000, Me, XP and NT 4.0

Printer Language
  • Epson ESC / P
  • IBM PPDS
  • Okidata Microline (FX-890 Okidata Mode only)
Interface
  • Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
  • USB 1.1
  • Type-B slot for optional interface cards
Input Buffer 128 KB
Control Panel Functions: Font, pitch, pause, tear off, bin selection, line feed, form feed, load, eject, micro adjust, top-of-form adjustment, panel lockout, reset, menu, default setting selection
Sound Level 55 dB(A) (ISO 7779 pattern)
Rated voltage 120 V
Input voltage range 103.5
