| Features |

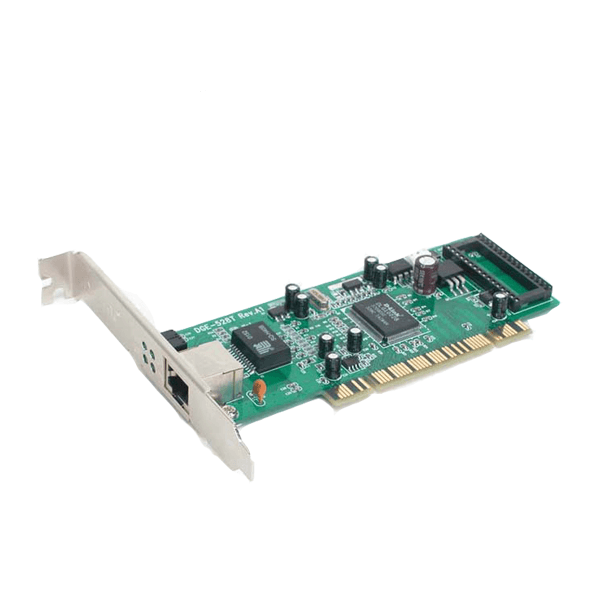

- Copper Gigabit connection for PC
- 10/100/1000Mbps auto-sensing speeds
- 2000Mbps Gigabit full duplex support
- 32-bit 33/66MHz clock speed PCI Bus Master operation
- Built-in FIFO (8K/64K) buffer to reduce overhead of memory tranfer
- Supports auto MDI/MDIX
- 802.3x Flow Control for fast, reliable data transmission
- Supports ACPI 2.0 WOL power management
- Supports 802.1Q VLAN Tagging
- PCI 2.1, 2.2 plug-and-play
- Very small size, very low power consumption
|
| Compatibility |
Win98, 2000, ME, NT, XP, NetWare, Linux, MacOS |
| Others |
- Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
- PCI local bus 2.1, 2.2 specifications
- IEEE 802.3x Flow Control
- IEEE 802.1Q VLAN tagging
- Protocol
- Data Transfer Rates
- Ethernet: 10Mbps (half duplex) 20Mbps (full duplex)
- Fast Ethernet 100Mbps (half duplex) 200Mbps (full duplex)
- Gigabit Ethernet 2000Mbps (full duplex)
- Network Cables
- 10BASE -T UTP Cat. 3, 4, 5 (100m max) EIA/TIA-586 100-ohm STP (100 m max)
- 100BASE-TX, 1000BASE-T : UTP Cat. 5 (100 m max) EIA/TIA-586 100-ohm STP (100 m max)
- Flow Control
- IEEE 802.3x flow control per for full duplex
- Back pressure in half duplex
- Full/half Duplex
- Full duplex only (1000Mbps)
- Full/half duplex (10/100Mbps
|
