Port Specifications
|

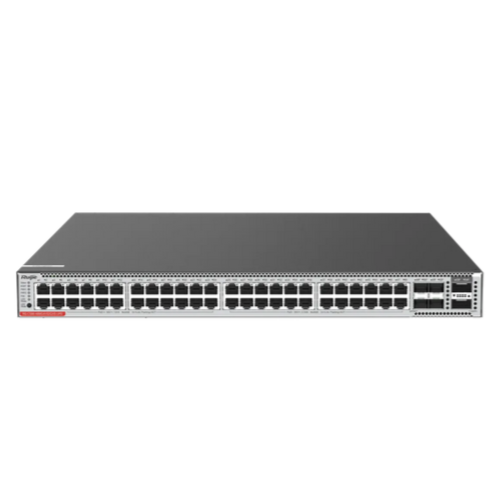

- Fixed service port 48 x 100/1000/2.5G/5GBASE-T ports. Ports 1 to 48 support PoE/PoE+. Ports 1 to 24 support PoE++

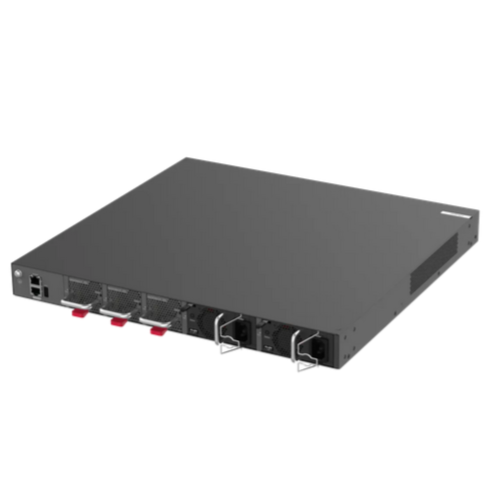

- 2 xpower module slots
- 3 x fan module slots
- Power module RG-PA600I-P-F. RG-PA1000I-P-F
- Fan module M2SFAN I-F (pre-installed 3)
- 1 x RJ45 console port 1 x RJ45 MGMT port
- 1 x USB Port
- Packet forwarding rate 625 Mpps
- Switching capacity 840 Gbps
- Single-core CPU, with a clock speed up to 1.25 GHz
|
|
System Specifications
|
- BootROM 16 MB (storing boot software for 1+1 boot redundancy)
- Flash memory 1 GB (storing boot software for 1+1 boot redundancy)
- Memory 2 GB
- Switch buffer 4MB
- MAC address table size 32,768
- ARP table size 16,000
- Number of IPv4 unicast routes 16,000
- Number of IPv4 multicast routes 4,000
- Number of IPv6 unicast routes 16,000
- Number of IPv6 multicast routes 2,000
- Number of ACEs Ingress: 2,500 Egress:1,000
- Number of VSU members 2
|
|
Dimensions and Weight
|
- (W x D x H) 563 mm x 563 mm x 210mm,1 RU, 8.42Kg
|
|
Power Supply and Consumption
|
- 2 x pluggable power supply modules
- Power module redundancy 1+1 power redundancy
- Power module hot swapping
- Maximum output power Built-in power supply: 460 W
- Maximum power consumption 200 W (without PoE) 1.800 W (full PoE load)
- Ports 1 to 24 support HPoE power supply (IEEE 802.3bt) Ports 1 to 48 support PoE/PoE+ power supply (IEEE 802.3af/at)
- PoE power cable pairs Four pairs (1-2, 3-6, 4-5, and 7-8 pairs)
- PoE output power Each PoE port provides up to 90W of power The maximum power is 1.600W
|
|
Environment and Reliability
|
- Operating temperature: 0°C to 45°C (32°F to 113°F)
- Storage temperature: –40°C to +70°C (–40°F to +158°F)
- Operating humidity: 10% to 90% RH (non-condensing)
- Storage humidity: 5% to 95% RH (non-condensing)
- Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
- Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
- Mean time between failure (MTBF) 237,221 hours (about 27 years)
|
|
Interface
|
- Fan 3 x pluggable fan modules
- Fan redundancy 2+1 redundancy
- Fan module hot swapping
- Heat dissipation Fan cooling, front-to-rear and left-to-rear airflow
- Acoustic noise 27°C (80.6°F): 60 Db. 45°C (113°F): 78 dB
- Power module hot swapping
- Fan module hot swapping
- USB hot swapping
- Cable hot swapping
- Monitoring of power supply model and status. Power supply failure alarming
- Fan speed adjustment: 3 levels Fan failure alarming
- ESD contact discharge/air discharge: 6 kV/8 kV
- ESD immunity contact discharge/air discharge: 8 kV/15 kV
- Surge protection MGMT port: 4 kV, Service port: 4 kV, Power port: common mode 6 kV, differential mode 6 kV
- Conformal coating supported (key components only)
|
|
Certifications and Regulatory Compliance
|
- Safety regulation IEC 62368-1
- EMC regulation EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
|
