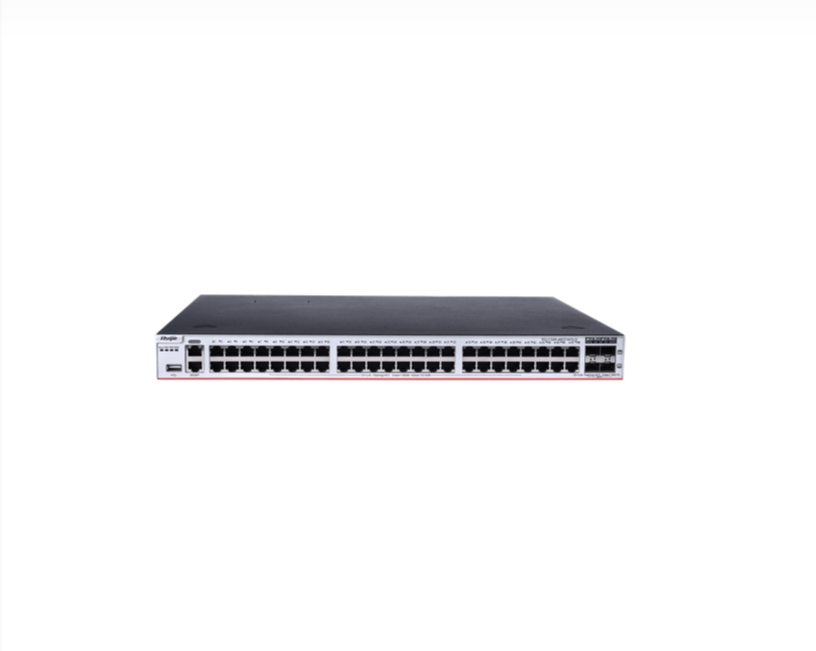

Fixed service port

• 48 x 10/100/1000BASE-T ports
  4 x 1GE/10GE SFP+ ports

Management port

• 1 x console, 1 x MGMT, 1 x USB3.0

System Specifications

• 488 Mpps, 656Gbps(bit/s)
• Fan Cooling
• CPU : Dual-core CPU, each core with the clock speed of 1.2 GHz
• Flash memory 4GB
• Memory 1 GB

Dimensions and Weight

• 440 mm x 340 mm x 44 mm, 6.2 KG

Power supply

• 2 x pluggable power modules
• Max output power : 150W
• Max power consumption : 60 W (excluding expansion modules) 85 W (including expansion modules)

Humidity

• Operating humidity: 10% to 90% RH (non-condensing)
• Storage humidity: 5% to 95% RH (non-condensing)

Security

• Multiple AAA modes
• RADIUS and TACACS+
• Port-based and MAC-based 802.1x authentication
• Web authentication
• HTTPS
• SSHv1, SSHv2
• Global IP-MAC binding
• Port isolation and port security
• IP source guard
• SAVI
• CPP and NFPP
• Strict and loose RPF uRPF ignoring default routes
• uRPF ignoring default routes
