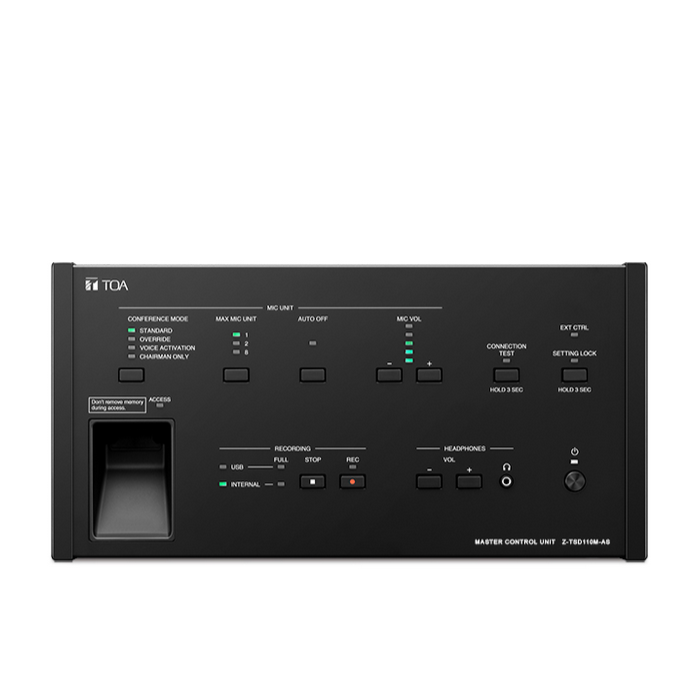

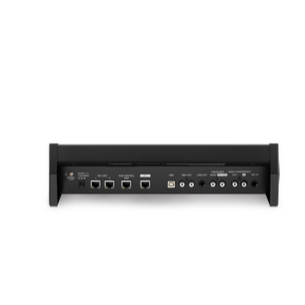

TOA Z-TSD110M-AS 1 Master Control Unit
RP. 58,188,000

Unit Kontrol Master Z-TSD110-M-AS dari Sistem Konferensi Digital TOA dirancang untuk digunakan melalui koneksi sederhana ke unit Ketua dan Delegasi menggunakan kabel CAT5e STP LAN. Unit Kontrol Master ini juga dilengkapi dengan fungsi perekaman, kontrol PC (* 1), dan kemampuan konfirmasi koneksi satu sentuhan. Hingga 32 unit Chairman/Delegate dapat dihubungkan dalam konfigurasi rantai daisy sederhana. Namun, untuk ekspansi lebih lanjut, hingga 5 unit TS-D1000-SU Sub Control dapat ditambahkan ke sistem, sehingga memungkinkan untuk menghubungkan sebanyak 246 unit Ketua / Delegasi dalam satu sistem konferensi yang terintegrasi penuh. Koneksi ke PC memungkinkan input dan output audio selama pertemuan dan konferensi Web, memberikan peserta dengan audio yang jelas dan mudah didengar.

Z-TSD110M-AS juga dilengkapi dengan FBS (Feedback Suppression), memungkinkan kontrol yang efektif dari umpan balik akustik. Selain itu, unit ini menggunakan perekam MP3 yang memungkinkan untuk merekam semua konten konferensi ke drive memori USB yang terhubung atau memori internal. Dengan menggunakan braket pemasangan rak opsional, dapat dipasang di rak peralatan Standar EIA (4 ukuran unit).

Power Source

  • 100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)

Power Consumption

  • 60 W or less

Audio Transmission System

  • Time-division multiplexing (TDM), 10 channels
    16-bit PCM, 32 kHz sampling frequency

Frequency Response

  • 100 Hz - 13 kHz

Total Harmonic Distortion

  • 0.5 % or less

Signal to Noise Ratio

  • 80 dB or more (A-weighted)

MIC Input

  • -54 dB (*2), 600 Ω, unbalanced, Ø 6.3mm phone jack (2P)

Output

  • LINE: -10 dB (*2), 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P)
    REC: -10 dB (*2), 10 kΩ, unbalanced, RCA pin jack, monaural
    HEADPHONES: Ø 3.5mm mini jack, monaural

USB Audio Input/Output

  • USB 2.0, type-B port

EQ Insert Input/Output Terminal

  • -10 dB (*2), 10 kΩ, unbalanced, RCA pin jack

Video Conference System Input/Output Terminal

  • -10 dB (*2), 10 kΩ, unbalanced, RCA pin jack

Number of Connectable Chairman/Delegate Units

  • 32 units

Number of Connectable Sub Control Units

  • 5 units

Maximum Cable Distance

  • 50 m (between Master Control Unit and terminal Chairman/Delegate unit at end of daisy chain)(*3)
    1 m (between Master Control Unit and Sub Control Units) (Use the cable supplied with the Sub Control Unit)

Maximum Number of Open Microphones

  • 2 Chairman units, 8 Delegate units

Chairman/Delegate Units Terminal

  • RJ45 connector x 2

Sub Control Units Terminal

  • RJ45 connector

LED Indicator

  • Power indicator, Conference Mode indicator, Number of
  • Open Microphones indicator, Microphone Auto Off indicator, Monitor Speaker of Conference Units Volume indicator, Connection Test indicator, External Control indicator, Setting Lock indicator, Recording Status indicator,
  • USB Access Status indicator, USB Memory Status indicator,
  • Internal Memory Status indicator, Remaining USB Memory
  • Capacity Warning indicator, Remaining Internal Memory
  • Capacity Warning indicator, LINK/ACT, 10BASE-T/100BASE-TX indicator.

Function Key

  • Conference model selector key: Standard/Override/Voice
  • Activation/Chairman Only
  • Number of open microphones selector key: 1/2/8
  • Microphone Auto Off setting key: ON/OFF
  • Monitor speaker of conference units volume control key: - , +
  • Setting lock key: ON/OFF
  • Headphone volume control key: - , +

Operation Key

  • Connection test, Rec start , Rec stop

Recording Ports

  • USB-A

Recording Function

  • Recordings can be made to a USB memory device (*4) or the internal memory.
  • Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
  • Sampling frequency: 32 kHz, Bit rate: 128 kbps

Network I/F

  • 10BASE-T / 100BASE-TX (Automatic-Negotiation)

Network Protocol

  • TCP, HTTP, DHCP, ARP, (APIPA), UDP (mDNS), UPnP

Network Connector

  • RJ45 connector

TYPE : Z-TSD110M-AS 1
