Item

Description

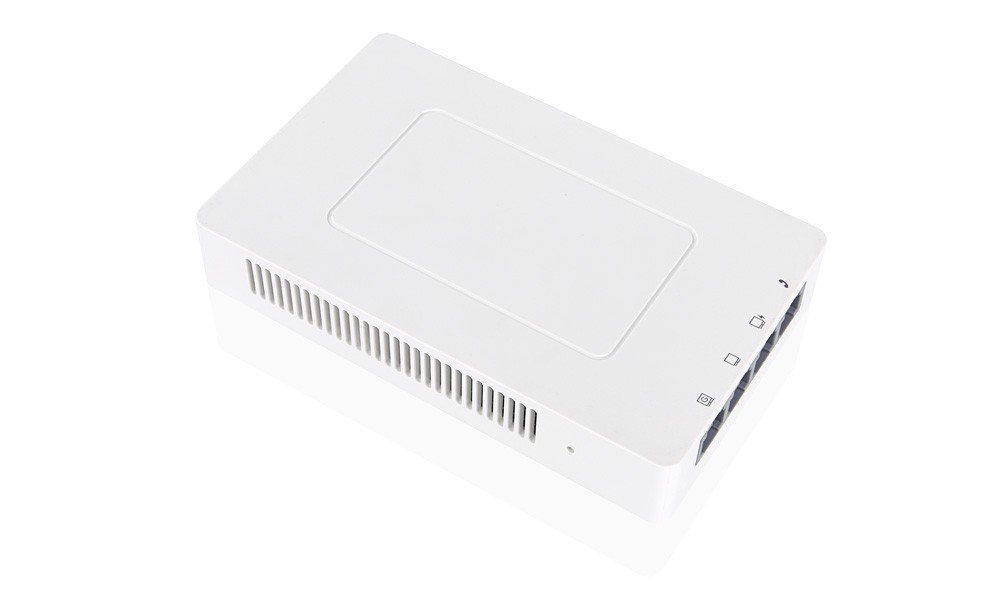

Model

AP-S350

Weight

0.24kg

Dimensions

140 * 86 *24 mm

Service port

Rear: 1 10/100Base-T Ethernet port, 1 RJ11 port
Front: 2 10/100Base-T Ethernet ports and one RJ11 port

PoE

802.3af/802.3at power supply supported

Transmit power

≤ 20 dBm

Power adjustment granularity

1 dBm

Power range

1 dBm to the value specified by national regulations

Power consumption

< 13 W

Antenna

2*2MIMO embedded antenna

Reset/restore factory settings

Supported

Status indicator

1*Power,1*WIFI,1*STATUS,1*SYS

Operating/storage temperature

-10ºC to +55ºC or -40ºC to +70ºC

Operating/storage humidity

5%-95% (non-condensing)

Protection level

IP 41

MTBF

> 250000 H

Item

Description

Model

AP-S350

RF

Streams

2

Maximum transmission speed of a single frequency

2.4 G：300 Mbps
5 G：867 Mbps

Operating frequency band

802.11ac/n/a : 5.725GHz-5.850GHz ; 5.15~5.35GHz (China)

802.11b/g/n : 2.4GHz-2.483GHz (China)

Modulation technology

OFDM: BPSK@6/9Mbps、QPSK@12/18Mbps、
16-QAM@24Mbps、64-QAM@48/54Mbps

DSSS : DBPSK@1Mbps、DQPSK@2Mbps、[email protected]/11Mbps
MIMO-OFDM : MCS 0-15
MIMO-OFDM （11ac）: MCS 0-9

Modulation mode

11b：DSS:[email protected]/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM

Channel quantity

802.11b, 802.11g, 802.11n (compatible with 802.11b/g mode): 13 channels
802.11a, 802.11g, 802.11ac (compatible with 802.11a mode): 13 channels

Manual and automatic channel adjustment

Supported

Automatic power adjustment

Supported

Manual power adjustment

The AP supports manual power adjustment with an adjustment granularity of 1 dBm. The power scope is from 1 dBm to the value specified by national regulations.

Timed turning on or off of RF

RF can be turned on or off based on the specified time period.

Coverage black hole detection and compensation

Supported

WLAN function

Maximum number of connected users

256(single band 128)

Connected user quantity restriction

Supported

Virtual AP

32

Chinese SSID

Supported

SSID hiding

Supported

User- and traffic-based intelligent load balancing

Supported

Bandwidth restriction

STA-, SSID-, or AP-based rate limiting is supported.

STA function

Abnormal STA disconnection detection, STA aging detection, and STA statistic and status query are supported.

Link integrity detection

Supported

Security authentication

Authentication mode

Pre-shared key authentication, portal authentication, 802.1x authentication, CA certificate authentication, WeChat authentication, SMS authentication, QR code authentication, temporary visitor authentication, and authentication exemption are supported.

Pre-shared key

WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK hybrid authentication

Portal authentication

Intelligent terminal type identification is supported. A page matching the terminal size is pushed to terminals. The page logo and displayed information can be customized. In addition, the verification, authentication interval, and reconnection authentication time thresholds can be set.

802.1x authentication

802.1x one-key configuration and 802.1x perception-free authentication are supported. You only need to download the one-key automatic configuration tool at initial access and finish wireless network configuration quickly. This simplified network deployment significantly.

CA certificate authentication

High-security certificate authentication can be implemented by using the CA certificate issuance center embedded into the controller, without the need to constructing a certificate server. Authentication by using a certificate imported from an external certificate server is also supported.

WeChat authentication

After access the wireless network, a user can scan the QR code of the shopping mall or enterprise and follow the public account to access the Internet. The one-key follow function can be easily deployed without any code development. In WeChat authentication, a user can access the network by clicking a text message network access link or clicking the menu bar to view advertisements, or access the network via WeChat authorization.

SMS authentication

SMS authentication takes effect forever. That is, a user can directly access the network without authentication after being authenticated via SMS at initial access. This reduces the SMS costs and improves user experience.

QR code authentication

After a visitor terminal accesses the wireless network, the terminal will automatically display a QR page. The approver scans the QR code of the visitor terminal via a cell phone and then the visitor can access the Internet. The visitor information is recorded in three dimensions: approver, remarks, and MAC address of the visitor terminal. This ensures user traceability and network security.

Temporary visitor authentication

A temporary user information management system is embedded. A temporary user can log in within the validity period and cannot after the validity period elapses. A secondary permission system for temporary account management is embedded and temporary accounts can be created and managed in this system. The QR code of a temporary visitor can be printed and the temporary visitor can scan the QR code to access the network. Temporary visitors can be grouped.

Authentication exemption

Only a portal advertisement page is displayed. A user needs to click the login button to access the network without entering any account password or performing other authentication.

Data encryption

Data encryption via TKIP and AES (CCMP) is supported.

Blacklist and whitelist

Static whitelist and blacklist are supported.

User isolation

SSID-based isolation, automatic VLAN grouping, and user isolation of specified VLANs are supported.

WIPS

Supported

Illegitimate AP detection and workaround

Supported

ACL

Account-, access location-, access terminal type- and SSID-based ACL policy assignment and management are supported.

Radius protocol

Supported

Wireless optimization

Application layer acceleration

Acceleration can be performed for the application layer. The acceleration service application can help increase the transmission speed by 1.5 to 4 times.

E-schoolbag scenario optimization

The transmission speed of multicast packets is increased, improving the effects of the E-schoolbag scenario in an all-round way.

Intelligent broadcast acceleration

The transmission speed of broadcast packets is automatically increased based on the actual environment, thereby improving the transmission efficiency of broadcast packets.

Terminal dragging prevention

This function aims to prevent the decrease of the entire network speed caused by low-speed terminals based on the time fairness algorithm.

Terminal viscosity prevention

This function involves detecting STAs connected to APs and intelligently guiding the STAs to the optimal AP.

Prohibited access of low-speed terminals

The speed of access terminals is limited. Weak-signal terminals with a speed lower than the specified value are prohibited from accessing the network. This improves the entire network speed.

High-density access scenario optimization

The response to broadcast probe requests is controlled for the purpose of optimizing high-density access scenarios.

ARP-unicast conversion

ARP broadcast packets are converted into unicast packets. This reduces the number of broadcast packets, thereby improving the transmission speed.

Prohibited DHCP requests destined for wireless terminals

After this function is enabled, DHCP broadcast requests will be forwarded only to the wired network, instead of other wireless network. This improves the network throughput and performance of the wireless network.

Hotspot analysis

AP-based access user quantity statistics

The number of connected users and change trends of each AP in the recent one day, one week, and one month can be measured.

AP-based network access traffic statistics

The network access traffic and change trends of each AP in the recent one day, one week, and one month can be measured.

AP-based signal quality analysis

Statistic analysis for the signal usage, noise, retransmit rate, BER, and BER change trends of each AP is supported.

AP access mode

AC discovery mechanism

L2 broadcast automatic discovery

L3 discovery based on configured static IP addresses

DHCP Option43 discovery

DNS domain name discovery

Cross-WAN and cross-NAT remote AP deployment

Supported

webAgent

Controller IP addresses can be dynamically discovered by using the webAgent technology. This avoids AP disconnection caused by unfixed controller IP addresses.

Tunnel encryption

Supported
