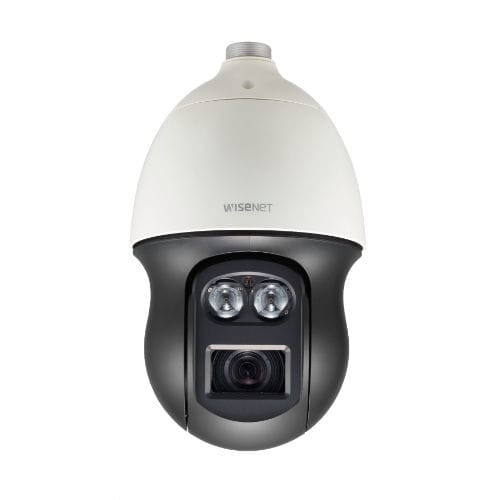

Wisenet X PTZ XNP-6250RH
RP. 55,000,000
- 4.44 ~ 111mm (Optical 25x) lens
- Day & Night (ICR), WDR (150dB)
- DIS with built-in gyro sensor
- Intelligent Video/Audio Analytics, Shock detection
- Max. IR viewable length 200m
- IP66, IK10
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS | |
| Effective Pixels | 1944(H)x1212(V) | |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 4.44~111mm(25x) zoom | |
| Max. Aperture Ratio | F1.6(Wide)~F3.9(Tele) | |
| Angular Field of View | H: 61.8˚(Wide)~2.84˚(Tele) / V: 36.2˚(Wide)~1.60˚(Tele) | |
| Min. Object Distance | Wide: 1.5m(4.92ft), Tele: 2m(6.56ft) | |
| Focus Control | Oneshot AF | |
| Lens Type | DC auto iris | |
| Pan / Tilt / Rotate | ||
| Pan Range | 360˚ Endless | |
| Pan Speed | Preset: 400˚/sec, Manual: 0.024˚/sec~250˚/sec | |
| Tilt Range | 95˚(-5˚~90˚) | |
| Tilt Speed | Preset: 250˚/sec, Manual: 0.024˚/sec~250˚/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.2˚ | |
| Azimuth | Support | |
| Auto Tracking | Support | |
| Operational | ||
| IR Viewable Length | 200m(656.17ft) | |
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | 150dB | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm I/O | Input 4ea / Output 2ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) | |
| Video Compression | H.265/H.264,MJPEG | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
|
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB | |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
|
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | 24VAC : -50°C~+55°C (-58°F ~ +131°F) / Less than 90% RH HPoE : -40°C~+55°C (-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C |
|
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH | |
| Certification | IP66, IK10 | |
| Electrical | ||
| Input Voltage | 24VAC, HPoE(IEEE802.3bt, Class7) | |
| Power Consumption | 24VAC: Max. 83W (typical : 30W) HPoE : Max. 51W (typical : 30W) |
|
| Mechanical | ||
| Color / Material | Body: Ivory / Plastic, Head: Black / Plastic | |
| Product dimensions / weight | Ø236.9x407.7mm(9.33x16.05"), 6.8Kg(14.99 lb) | |
|
