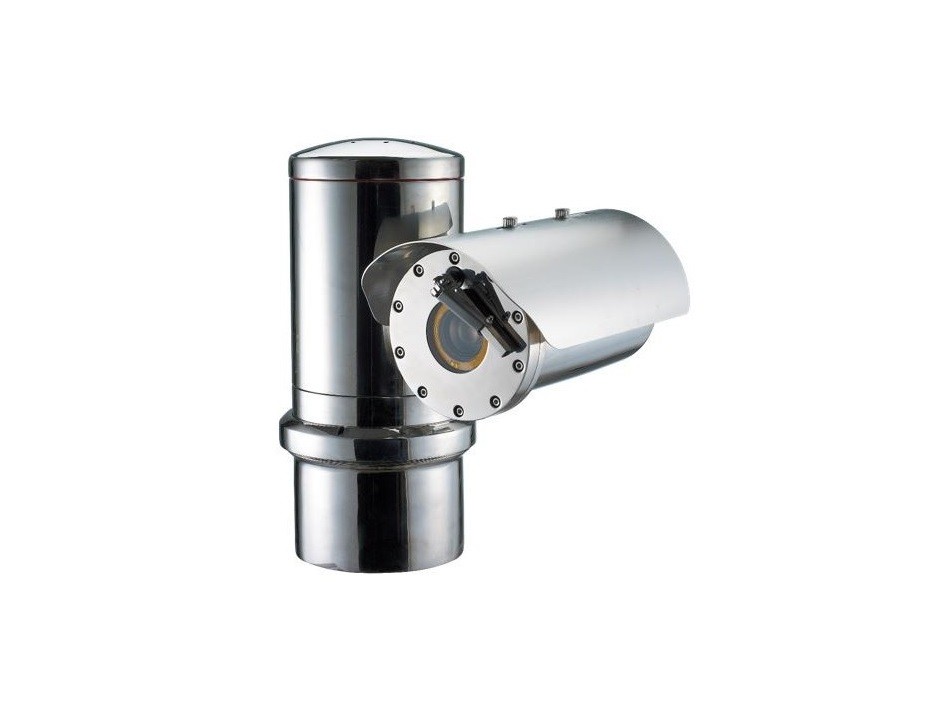

Wisenet Explosion Proof Camera TNU-6320E
RP. 366,685,000
- Max. 2MP (1920 x 1080) resolution
- 4.44~142.6mm (32x) optical zoom
- ATEX certification, Built-in wiper
- Max. 60fps@2MP at all resolution
- 0.15 [email protected] (Color), 0.015 [email protected]@ (B/W)
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS | |
| Effective Pixels | 1944(H)x1104(V) | |
| Min. Illumination | Color: 0.15Lux(F1.6, 1/30sec) B/W: 0.015Lux(F1.6, 1/30sec) |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom | |
| Max. Aperture Ratio | F1.6 (Wide)~F4.4 (Tele) | |
| Min. Object Distance | 1.5m(59.06ft) | |
| Focus Control | Oneshot AF | |
| Lens Type | DC auto iris | |
| Pan / Tilt / Rotate | ||
| Pan Range | 360˚ Endless | |
| Pan Speed | Preset: 50˚/sec, Manual: 0.1˚/sec ~ 40˚/sec | |
| Tilt Range | 180˚(-90˚~90˚) | |
| Tilt Speed | Preset: 50˚/sec, Manual: 0.1˚/sec ~ 40˚/sec | |
| Sequence | Preset(255ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.2˚ | |
| Azimuth | Support | |
| Operational | ||
| Camera Title | Displayed up to 45 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅢ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | 4ea, rectangular zone | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Analytics | Face detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail NAS recording at event triggers Alarm output |
|
| Wiper | Support | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.264: Main/Baseline/High, MJPEG | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Smart Codec | Manual(5ea area) | |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(10 users) / Multicast Multiple streaming(Up to 10 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Application Programming Interface | ONVIF Profile S SUNAPI (HTTP API) SVNP 1.2 Wisenet open platform |
|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11,~MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
|
| Memory | 512MB RAM, 128MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / Less than 90% RH * Start up should be done at above -30°C |
|
| Storage Temperature / Humidity | -30°C~+60°C (-22°F~+140°F) / Less than 90% RH | |
| Certification | IP67, IK10 CE2460, EX II 2 GD, Ex d IIC T6 Gb IP67 Ex tb IIIC T80°C Db |
|
| Electrical | ||
| Input Voltage | 24VAC | |
| Power Consumption | 24VAC: Max 49W | |
| Mechanical | ||
| Color / Material | Silver / Stainless(SUS316L) | |
|
