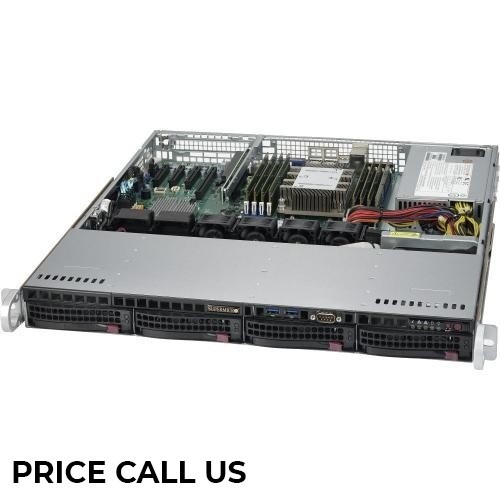

SUPERMICRO SuperServer SYS-5019P-MR
RP. 0
• Intel C621 chipset
• 1 PCI-E 3.0 x16 slot (FH, HL)
• 2x 1GbE with Marvell® 88E1512
• 4 Hot-swap 3.5 SATA3 bays w/ RAID
• 1 VGA, 2 COM, 5 USB 3.0, 6 USB 2.0
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 400W Redundant Platinum Power Supplies w/ BBP option
• 6 DIMMs, up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM
• Single Socket P (LGA 3647) supports 2nd Gen. Intel Xeon Scalable processor (Cascade Lake/Skylake)
| Main Specifications | ||
| Built-in Devices | Super X11SPM-F | |
| Device Type | SuperServer | |
| Dimensions (HxWxD) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 19.8" (503mm) | |
| Enclosure Color | Black | |
| Form Factor | 1U Rackmount - CSE-813MFTQC-R407CB | |
| Weight | Gross Weight: 30.4 lbs (13.8 kg) - Net Weight: 17.6 lbs (8 kg) | |
| Processor | ||
| Cache/Core | Up to 28 Cores | |
| Compatible Processors | 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake) | |
| Support CPU TDP 70-165W | ||
| Compatible Socket | Single Socket P (LGA 3647) | |
| System Memory | ||
| Memory Capacity | 6 DIMM slots | |
| Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM | ||
| Supports Intel Optane DCPMM | ||
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| On-Board Devices | ||
| Chipset | Intel C621 chipset | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Controllers | Dual Gigabit Ethernet LAN with Marvell 88E1512 | |
| SATA | SATA3 (6Gbps) via C621 controller | |
| RAID 0, 1, 5, 10 support | ||
| VGA | ASPEED AST2500 BMC | |
| Input / Output | ||
| DOM | 2 SuperDOM (Disk on Module) ports with built-in power | |
| LAN | 2 RJ45 1GbE LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| Serial Port / Headers | 2 COM ports (1 rear, 1 header) | |
| USB | 4 USB 3.0 ports (2 front, 2 rear) | |
| 2 USB 2.0 ports (rear) | ||
| VGA | 1 VGA port | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power LED, Hard drive activity LED, Network activity LEDs, System Overheat LED | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x16 slot (FH, HL) | |
| Drive Bays | ||
| Hot-swap | 4 Hot-swap 3.5" SATA3 drive bays | |
| M.2 | Interface: PCIe 3.0 x4 | |
| Form Factor: 2242, 2280 | ||
| Peripheral Drives | ||
| Optional | 1 Slim DVD-ROM drive | |
| 1 USB + COM port tray | ||
| System Cooling | ||
| Fans | 4x 40x28mm PWM fans, 2x fans for AOC cooling | |
| Optional 2 fans for AOC cooling | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Fans with tachometer monitoring | |
| Status monitor for speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Power Supply | ||
| Certification | 80PLUS Platinum Level Certified | |
| Power Supply | 400W 1U Redundant Power Supplies with PMbus | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Specifications | ||
| Non-operating Relative Humidity | 5% to 95% (non-condensing) | |
| Non-operating Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity | 8% to 90% (non-condensing) | |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) | |
| Management | ||
| Power Configurations | ACPI Power Management | |
| Software | Intel Node Manager, IPMI 2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watch Dog | |
| Parts List - (Items Included) | ||
| Backplane | 1x BPN-SAS3-815TQ | |
| Cables | 1x CBL-SAST-0644 | |
| Fans | 4x FAN-0154L4 | |
| Heatsink / Retention | 1x SNK-P0067PS | |
| Manual | 1x MNL-2008-QRG | |
| Motherboard / Chassis | 1x MBD-X11SPM-F / 1x CSE-813MFTQC-R407CB | |
| Parts | 1x MCP-120-00031-0N | |
| Power Supply | 2x PWS-407P-1R | |
| Riser Card | 1x RSC-RR1U-E16 | |
Unit termasuk:
- Unit Utama
