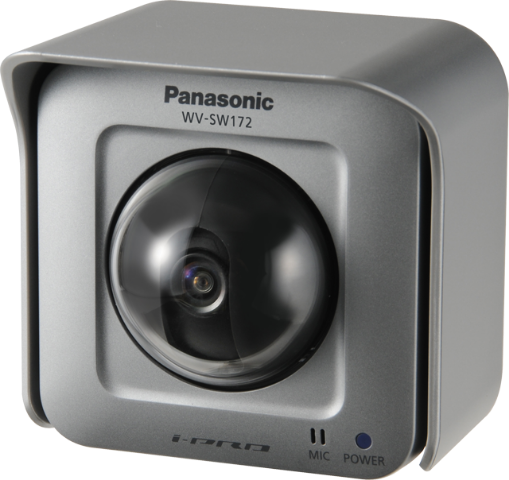

CCTV Panasonic iPro Dome Camera Outdoor 1.3MP WV-SW172 Wide View -

CCTV Panasonic iPro Dome Camera Outdoor 1.3MP WV-SW172 Wide View

RP. 20,900,000

• 1.3 Megapixel high sensitivity MOS Sensor • Full frame (Up to 30 fps) transmission at SVGA (800 x 600) image size • Panning/tilting and Preset Map Shot function realizes wide range monitoring. • Face Wide Dynamic Range • High sensitivity with Day & Night (electrical) function: 0.6 lx (Color), 0.5 lx(B/W) at F2.2 • H.264 (High profile) dual stream and JPEG output • Power over Ethernet (PoE) IEEE 802.3af • IP55 rated

Deskripsi
Informasi Tambahan

Indoor / Outdoor		Outdoor
Image sensor		1/4 MOS
Min. Illumination Color (lx)		0.6
Min. Illumination B/W (lx)		0.5
Maximum Resolution		SVGA
Maximum FPS		30
Super Dynamic		-
Image compensation		Adaptive Black Stretch, Digital noise reduction
Color/BW		Electrical
ABF(Auto back focus)/Auto Focus/Focus Assist		-
IR LED		-
Image Stabilizer		-
Corridor Mode		-
Privacy Zone		2
iA (Intelligent Auto)		-
Intelligent VMD (i-VMD)		Type1
Focal length		f=1.95mm, F2.2
Zoom ratio		-
Angular field of view (16:9)		H: 85 deg. V: 53 deg.
Angular field of view (4:3)		H: 85 deg. V: 68 deg.
Panning Range		-47.5 - +47.5 deg.
Tilting Range		-45 - +10 deg.
Network IF		10Base-T, 100Base-TX, RJ45 connector
Video Codec		H.264, JPEG
Transmission mode (H.265/H.264)		Constant bit rate, Advanced variable bit rate, Frame rate, Best effort
Smart Coding		-
Audio Support		Yes
Built-in microphone		Yes
Microphone/Line Input		Yes
Audio Output		Yes
SD memory Card Slot		SDXC
External I/O Terminals		Yes
Ambient Operating Humidity		Less than 90
Vandal Resistant		-
Water and Dust Resistance		IP55, NEMA 3R
ClearSight Coating / Rain Wash Coating		-
Dehumidification device		-

Temperature (degree, Celsius)	MAX	50
Temperature (degree, Celsius)	MIN	-20
Temperature (degree, Fahrenheit)	MAX	122
Temperature (degree, Fahrenheit)	MIN	-4
Power Source		PoE, 12V DC
SSL device certificate		-
ONVIF Profile		S
