Baterai |
- Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
|
Form Factor |
|
Lain-lain |
- Multi-function LCD status and control console
- Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Data Line Protection : Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
|
Dimensi Produk |
- 25 x 38.2 x 10 cm (WxDxH)
|
Voltase Masuk |
- Nominal Input Voltage : 230V
- Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
- Input Connections : IEC-320 C14
- Input voltage range for main operations : 176 - 294V
- Maximum Input Current : 10.0A
|
Voltase Keluar |
- Nominal Output Voltage : 230V
- Output Frequency (sync to mains) : 50/60 Hz +/-1 Hz
- Topology : Line Interactive
- Waveform type : Stepped approximation to a sinewave

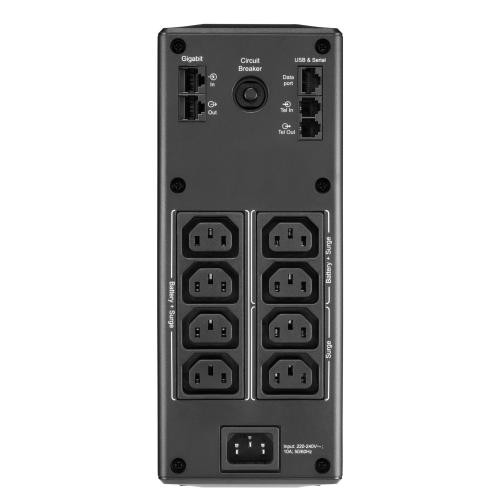

- Output Connections : (6) IEC 320 C13 (Battery Backup)
- Transfer Time : 10ms typical : 12ms maximum
|
Antarmuka / Interface |
|
