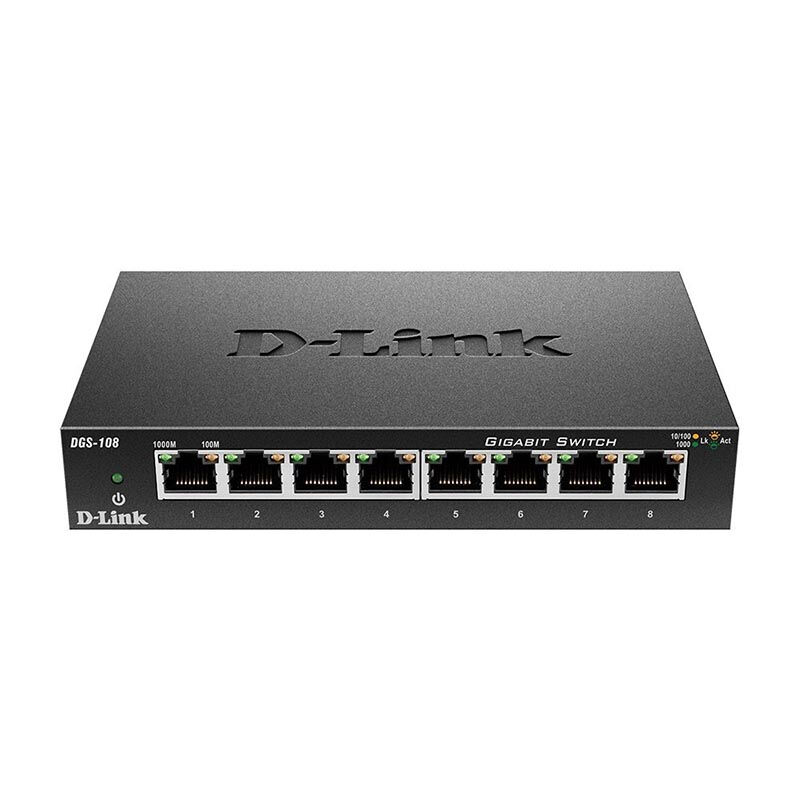

D-Link Unmanaged Switch (DGS-108) 8 Port (Metal Case)
RP. 399,000
  • 8-port UTP 10/100/1000Mbps
  • Switch
  • Metal Case
  • Unmanaged
Bagikan di :
Tags : 1

Deskripsi

Ports 8 x 10/100/1000M
Media interfaces Ethernet RJ-45
Manageable No
Others
  • Feature :
    • Built-in D-Link Green Technology
    • Inexpensive Gigabit solution for Home/SOHO
    • Auto MDI/MDIX crossover for all ports
    • Secure store-and-forward switching scheme
    • Full/half-duplex for Ethernet/Fast Ethernet speeds
    • IEEE 802.3x Flow Control
    • Supports 9,000 Byte Jumbo Frames
    • Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
    • Supports Cable Diagnostics Function
    • RoHS compliant
    • Plug-and-play installation
  • Standards
    • IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
    • ANSI/IEEE 802.3 NWay auto-negotiation
    • IEEE 802.3x Flow Control
    • IEEE 802.1p QoS
    • IEEE 802.3az Energy-Efficient Ethernet (EEE)
  • Protocol : CSMA/CD
  • Data Transfer Rates
    • Ethernet : 10 Mbps (half duplex) & 20 Mbps (full duplex)
    • Fast Ethernet : 100 Mbps (half duplex) & 200 Mbps (full duplex)
    • Gigabit Ethernet : 2000 Mbps (full duplex)
  • Topology : Star
  • Network Cables 10BASE-T
    • UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • Network Cables 100BASE-TX, 1000BASE-T
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)
  • Auto MDI/MDIX adjustment for all ports
  • LED Indicators
  • MAC Address Table : 8k
  • RAM Buffer : 128 KB per device
