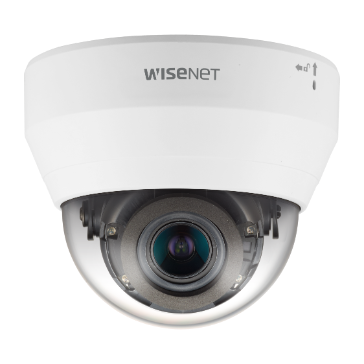

Wisenet Q SERIES QND-7080R
RP. 8,030,000
- Max. 4M resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- Max. 20fps@4M, Max.30fps@2M all resolutions
- H.265, H.264, MJPEG codec supported
- Day & Night (ICR), WDR (120dB)
- Motion detection, Tampering, Defocus detection
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m
- Hallway view support
- LDC support (Lens Distortion Correction)
| Video | ||
|---|---|---|
| Imaging Device | 1/3" 4MP CMOS | |
| Effective Pixels | 2688(H)x1520(V) | |
| Min. Illumination | Color: 0.15Lux(F1.4, 1/30sec) BW: 0Lux(IR LED on) |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal | |
| Max. Aperture Ratio | F1.4(Wide)~F3.6(Tele) | |
| Angular Field of View | H: 109.7°(Wide)~26°(Tele) / V: 60.8°(Wide)~15.2°(Tele) / H: 131.3°(Wide)~30.1°(Tele) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris (IR corrected) | |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~70˚ / 0˚~355˚ | |
| Operational | ||
| IR Viewable Length | 20m(65.62ft) | |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | 4ea, polygonal zones | |
| Privacy Masking | 6ea, rectangular zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus detection, Motion detection, Tampering | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
|
| Audio In | Built-in mic | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264, MJPEG | |
| Resolution | 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, MJPEG: Max 15fps/12fps(60Hz/50Hz) |
|
| Smart Codec | WiseStreamⅠ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
|
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB | |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
|
| Memory | 512MB RAM, 256MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | -10°C ~ +55°C(14°F ~ +131°F) / Less than 90% RH | |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH | |
| Electrical | ||
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE: Max 7.20W 12VDC: Max 6.40W |
|
| Mechanical | ||
| Color / Material | Ivory / Plastic | |
| Product dimensions / weight | Ø119.8x98.8mm(Ø4.72x3.89"), 355g(0.78 lb) | |
| DORI | ||
| Detect (25PPM/ 8PPF) | Wide: 36.5m(119.76ft) / Tele: 224.5m(736.69ft) | |
| Observe (63PPM/ 19PPF) | Wide: 14.6m(47.90ft) / Tele: 89.8m(294.68ft) | |
| Recognize (125PPM/ 38PPF) | Wide: 7.3m(23.95ft) / Tele: 44.9m(147.34ft) | |
| Identify (250PPM/ 76PPF) | Wide: 3.7m(11.98ft) / Tele: 22.5m(73.67ft) | |
|
Unit Termasuk |
Unit Utama |
