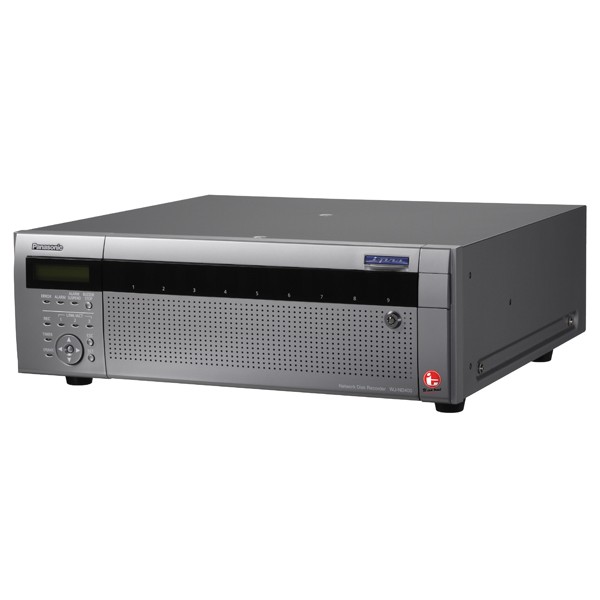

NVR Panasonic iPro WJ-ND400K/G
RP. 264,000,000
H.264, MPEG-4 and JPEG multi format Up to 64 network cameras can be connected and recorded Various Recording Modes: Manual, Schedule including Event (Pre/Post),Emergency Playback VMD search Up to 54 TB with 9 HDD slots in the main unit and five WJ-HDE400 optional Extension Units each with 9 HDD slots
| Supported Cameras | Panasonic i-Pro series Network cameras (Contact Panasonic for BB series and Axis® cameras) | |
| Supported Image Format | MPEG-4, JPEG, M-JPEG | |
| Supported Image Resolution | 1,280 x 960, 960 x 720, 640 x 480, 320 x 240 (Depending on the camera) | |
| Supported Audio Format | G.726 (ADPCM) 32 kbps | |
| Maximum Number of Cameras | 64 | |
| Recording | Recording Mode | Manual, Schedule including Event (Pre/Post), Emergency |
| Pre-Event Recording | Up to 15 minutes with dedicated HDD for Pre-Event. Shorter Pre-Event recording is possible without dedicated HDD. |
|
| Scheduled Recording Mode | 8 programs, 6 time zones/day, Independent setup for each day of the week | |
| Frame Rate/Camera | Up to 30 ips (Depending on the Camera) | |
| Browser GUI | Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode |
| REC/Playback Control | REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record, Prev Image, Next image, Goto Date, Goto Last (5 sec. ~ 5 min.), Area select | |
| Search Mode | Filtered search: Time date, Event type, Camera number VMD search: one detection areas per search (works with supported i-Pro cameras and WJ-NT314) |
|
| Display Mode | Spot/Quad (16 patterns) / Spot Sequence / Quad Sequence (Sequence: Live only) | |
| Camera Grouping | 8 groups each with 16 characters title | |
| Image Download | Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately. | |
| SD Memory Data Download | Images recorded in the SD card in the i-Pro series cameras can be transferred to the recorder automatically. | |
| Copy | Recorded data of selected cameras and time date range can be copied to the COPY partition. | |
| Camera Title | On the browser, Up to 16 Characters | |
| Clock Display | On the browser. Time: 12 H/24 H, Date: 3 formats (YY.MM.DD, MMM.DD.YY, DD.MMM.YY) | |
| Alarm Control | Reset, Suspend | |
| Digital Zoom | 2x, 4x | |
| System Log | Operator access (100), Network error (1,000), Error (100), Event (750) | |
| System Setup | Setup page in English, French, Italian, Spanish, German, Russian, Chinese, Japanese | |
| GUI Language | English, French, Italian, Spanish, German, Russian, Chinese, Japanese | |
| Supported OS | Microsoft® Windows Vista® Bussiness 32 bit Microsoft® Windows® XP Home Edition SP2 Microsoft® Windows® XP Professional SP2 The language of the OS must be same as selected GUI language. |
|
| Supported Browser | Windows® Internet Explorer® 7.0 Microsoft® Internet Explorer® 6.0 SP2 | |
| Alarm / Event | Alarm Source | 32x Terminal inputs, 64x Camera alarms, Panasonic Alarm Protocol |
| Event Mode | Alarm / Activity / OFF | |
| Alarm Action | Alarm recording, e-mail notification, Alarm message, Camera positioning, FTP image transfer, Terminal output, Panasonic alarm protocol output, Buzzer, LED | |
| Alarm Control | Reset, Suspend | |
| Event log | 750 | |
| Network | Network Interface | Camera port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45) Client port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45) Maintenance port: 10Base-T (RJ-45) |
| Maximum Band Width | Total 200 Mbps | |
| Bandwidth Control (Client Port) | 32 K / 64 k / 128 k / 256 k / 512 k / 1,024 k / 2 M / 5 M / 10 M (bps) and unlimited | |
| Supported Protocol | TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, RTP | |
| Upon Alarm or Warning | ||
| FTP Client | Upon alarm or Periodic transfer | |
| No. of Simultaneous Users | 16 | |
| User Registration | Up to 32 users | |
| User level | 4 Levels (Programmable) | |
| Partitioning | User - Camera (View only, View & Control, No Access) | |
| Security Method | User authentication (ID and password), Host authentication (IP address), Alteration detection, HTTP Port No. (1 ~ 65,535 except for reserved numbers), FTP Port No. (1 ~ 65,535 except for reserved numbers) | |
| External Interface | Alarm Connector (D-sub25 pin) | Alarm input 1 ~ 7, 17 ~ 32*1 |
| Alarm/Control Connector (D-sub25 pin) | Alarm input 8 ~ 16*1, 1x Alarm output*2, 1x Alarm reset input*1, 1x Alarm suspend input*1 | |
| Control : Emergency recording input*1, Power outage detection input*1, External recording mode switching*1, Power outage recovery completion output*3, Time adjustment input/output*4, +5 V output*5 | ||
| Error/Warning : Network error output*2, Available disk space warning output*2, HDD error output*2, Camera error output*2, Error output*2 | ||
| EXT Storage | High-speed serial interface 1.5 Gbps (theoretical value) Only for WJ-HDE400 Extension Unit | |
| Other Functions | Time Synchronization | Terminal (Master or Slave), NTP (Server/Client) |
| Summer Time | User definable (using menu setup) | |
| HDD | Type | 1x 8.89 cm 500 GB Serial ATA HDD (Factory default), Up to 9x HDDs can be installed. |
| Maximum Capacity | 54 HDD slots (with 5x WJ-HDE400 Extension Units, 9x HDDs installed in each unit) | |
| RAID | RAID 5/6 supported | |
| Partitioning | Normal / Event / Pre-Event / Copy | |
| Viewer Software | Playback Control | Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next image |
| Additional Functions | Alteration detection, Save as JPEG, Two times zoom, Print | |
| Supported OS, Language | Same as browser GUI, Language of the software will be English | |
| General | Safety/EMC Standard | CE (EN60065, EN55022 ClassB, EN55024), C-Tick |
| Power Source | 220 ~ 240 AC, 50 Hz | |
| Power Consumption | approx. 170 W | |
| Ambient Operating Temperature | +5 °C ~ +45 °C (41 °F ~ 113 °F) | |
| Ambient Operating Humidity | 5 % ~ 90 % (no condensation) | |
| Maximum Operating Altitude | 2,000 m (6,500 feet) above sea level | |
| Dimensions | 43.0 cm (W) x 13.2 cm (H) x 40.0 cm (D) (excluding rubber feet and projections) |
|
| Weight | 14 kg (30.9 lbs.) with 1 HDD (Factory default) 20 kg (44.15 lbs.) with 9 HDDs | |
| Note | * Non-voltage make contact, +5 V pull-up 150 Ω * Open collector output, 24 V max., –100 mA * High (+5 V ~ +12 V, 6.3 mA maximum) * 52 kΩ, 5 V pull-up, –100 mA / make contact * 200 mA at maximum * Weights and dimensions are approximate. * Specifications are subject to change without notice. |
|
RAID5/6, Embedded OS and alteration detection for reliability
