RP. 95,071,000
Camera
PTZ
Image sensor : 1/2.8” 4K Sony Exmor CMOS
Effective Picture Elements : 8 Megapixels
Output Resolution : 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25,1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Optical Zoom : 30X
Digital Zoom : 1X
Viewing Angles : 69.2° (Wide) to 2.8° (Tele)
HFOV : 62.3° (Wide) to 2.5° (Tele)
VFOV : 37.3° (Wide) to 1.4° (Tele)
Focal length : f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris) : F = 1.8 (Wide) to 4.7 (Tele)
Wide Angle Camera
Image Sensor : 1/2.8” 4K Sony Low Lux CMOS
Effective Picture Elements : 8 Megapixels
Output Resolutions : 4K/30
Focal Length : 2.22 mm
Viewing Angles : DFOV: 113°
HFOV: 105°
VFOV: 71°

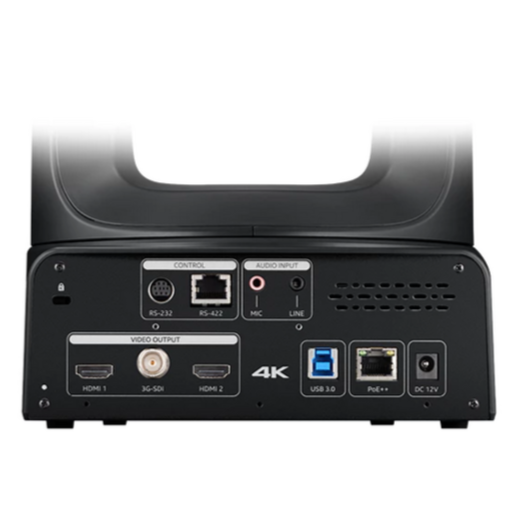

Interface
Video Outputs : 3G-SDI, HDMI x 2, IP, USB
Audio Outputs : 3G-SDI, HDMI x 2, IP, USB
Audio Inputs : MIC in, Line in
AI Auto Tracking Functions
Tracking Modes : Presenter Mode, Zone Mode, Hybrid Mode, Segment Mode
|
Camera |
HFOV : 62.3° (Wide) to 2.5° (Tele) VFOV : 37.3° (Wide) to 1.4° (Tele)
HFOV: 105° VFOV: 71° |
|
Interface |
|
Type : AVER TR535N NDI® Dual Lens
