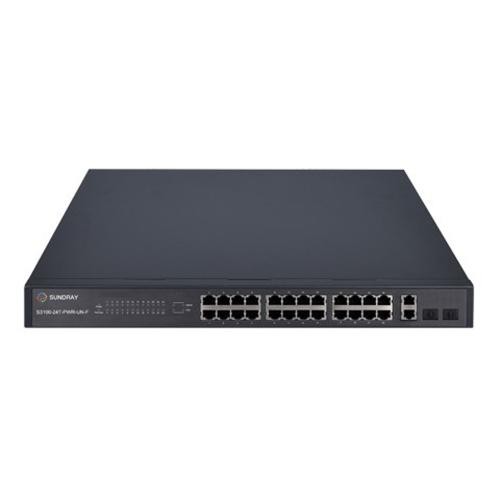

Sundray POE Switch S3100-24T-PWR-UN-F
RP. 19,952,900
- Support IEEE802.3at (30W) standard, compatible with IEEE802.3af (15.4W) powered equipment;
- Maximum support 24 ports IEEE802.3af/15.4W output or 12 ports IEEE802.3at/30W output;
- Automatically detect and identify power receiving equipment that meets the IEEE802.3af/at standard, and adaptively supply power;
- Support only power supply for IEEE802.3af/at standard equipment to avoid damage to the equipment;
- Support port power supply priority to ensure continuous power supply to key nodes of the network;
- The transmission distance of the network cable power supply can be up to 100 meters, which can flexibly expand the network;
| model | S3100-24T-PWR-UN-F | supporting agreement | IEEE802.3ab/u/x |
| Number of interfaces | 24*100M POE electrical port, 2*Gigabit photoelectric multiplexing port | Negotiation mode | Auto-negotiation |
| Exchange capacity | ≥32Gbps | Packet forwarding rate | ≥6.6Mpps |
| Forwarding mode | Full line speed store and forward | Forwarding rate | 1000M: 1488095pps/port |
| Power supply standard | IEEE802.3af/at | Power supply pin | 1,2(+)/3,6(-) |
| Single port maximum output power | 30W | Maximum output power of the whole machine | 384W |
| Input power | 100～240V AC, 50/60Hz | Power consumption | <20W |
| MAC | 8K | Port flow control | Half-duplex is based on back pressure; |
| Full-duplex based on PAUSE frame | |||
| Network cable sequence | Support Auto-MDIX | The farthest power transmission distance | 100M |
| Operating temperature | 0℃～40℃ | storage temperature | -40℃～70℃ |
| weight | - | physical dimension | 440x330x44mm |
|
Unit Termasuk |
Unit Utama |
