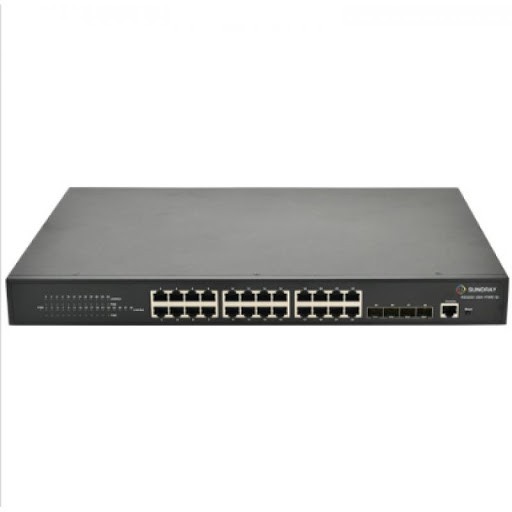

Sundray POE Switch RS5300-28X-PWR-SI
RP. 34,626,167
  1. The machine provides 24 Gigabit POE electrical ports and 4 10G SFP+ 10 Gigabit optical ports;
  2. Support 802.3af/at power supply standard, the maximum output of a single port is 30W, and the maximum output of the whole machine is 370W;
  3. Support fat and thin mode switching, zero configuration online management in thin mode, realize plug and play;
  4. Support wireless AC centralized configuration management, including port information, VLAN, port switch, etc.;
  5. Support visual status check, including switch load, forwarding load, online status, switch status;
  6. Support Voice Vlan function, can access IP telephone equipment, unify telephone network and computer network into a whole
  7. With security features, support linkage with wireless network equipment and security equipment to achieve safer network management and control;
  8. To meet the needs of large-scale networking, suitable for large-scale campus network, enterprise network, IP metropolitan area network construction access equipment;
model RS5300-28X-PWR-SI Applicable scene Enterprise network, campus network, metropolitan area network
Number of interfaces 24* Gigabit electrical port; Other interface 1*CONSOLE port
  4*10G SFP+ optical port
POE power supply standard POE/POE+ remote power supply POE output power Maximum 370W
Exchange capacity 336Gbps/3.36Tbps Packet forwarding rate 108Mpps/126Mpps
Spanning tree STP, RSTP, MSTP protocols Routing function Support IPv4/IPv6 static routing;
      Support RIPv1/2, OSPF and other IPv4 dynamic routing;
      Support IPv4 policy routing;
      ARP table≧512
Multicast Support IGMP v1/v2/v3 snooping; VLAN 4K
  Multicast entry ≧1K ;
Access method Fat and thin one (support switching) Online method Layer 2 broadcast/static IP address/DHCP Option43/DNS domain name
Access security Support DHCP Relay, DHCP Server; reliability Support VRRP, BFD for VRRP;
  Support DHCP Snooping;   Support BFD for RIP/OSFP/static routing/policy routing;
  Support Portal authentication;   Support Smartlink (backup link);
  Support 802.1X authentication;   Support Monitor-link (uplink monitoring)
  Support blacklist and white name
MAC 16K, support automatic learning, filtering, learning limit Security features Anti-ARP spoofing, port protection/isolation, anti-DOS/ARP attack, CPU protection
Port aggregation 64, support manual, static LACP Virtualization Support vUnit (stacking technology, virtualize multiple devices into one)
      Support M-LAG, cross-device link aggregation, paired devices have independent control plane
Network management APP remote management, NAT remote management Switch portrait Support visual inspection
power supply 100~240V AC, 50/60Hz Lightning protection level Built-in lightning protection, 9KV
Safety FCC, CE, RoHS EEE Energy-saving technology supporting IEEE 802.3az standard
Operating temperature -5℃~50℃ storage temperature -40℃~70℃
Working humidity 5%~90% RH (no condensation) physical dimension 440mm x 330mm x 44.5mm

Unit Termasuk

Unit Utama
