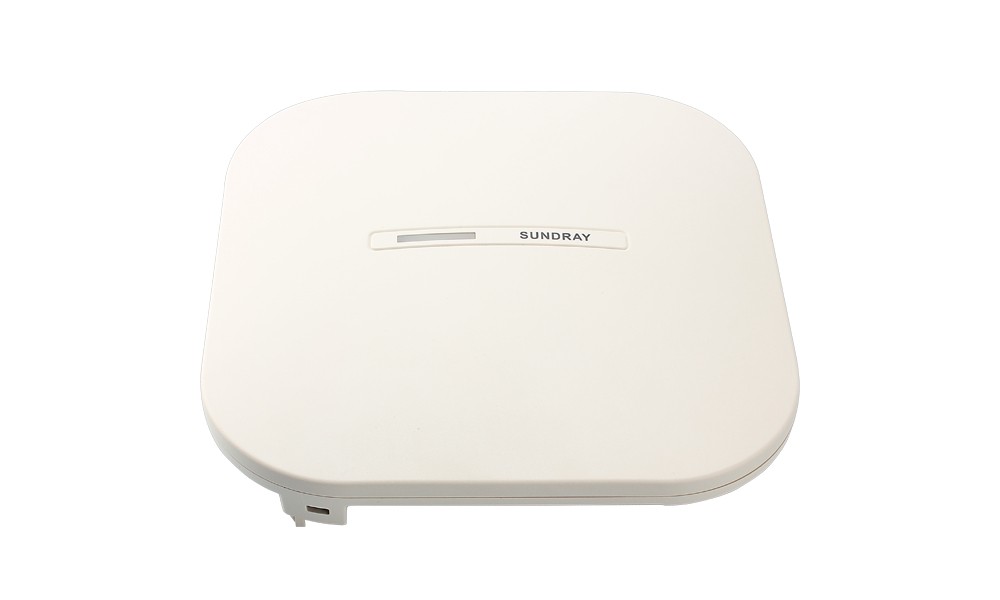

Sundray Access Point S172
RP. 8,091,000
  • Indoor AP
  • supports 802.11a/b/g/n/ac/wave2 and supports 2.4G and 5G simultaneously. Maximum access rate is 1167Mbps
  • supports wired and 4G SIM Card uplink
  • and supports 4 downlink wired network ports
  • only supports DC power supply.
Port No. 1*10/100 Mbps WAN port
4*10/100 Mbps LAN ports
1*NANO SIM interface
Data Transfer 1167Mbps
Working Band
802.11b/g/n :
2.4GHz~2.483GHz
802.11ac/n/a :
5.15GHz~5.35GHz
5.725GHz~5.850GHz
Support 802.11ac WAVE2.0
Basic Capacity Fat & Fit mode
2*2MIMO(Embedded)
Maximum connection:256
(depends on the environment)
Virtual AP:32
Output Power:≤20dBm
Adjustable granularity:1dBm
Support SSID Hiding
Balanced load based on user/traffic/band
Speed limit based on STA/SSID/AP
Link integrity detection
Support full netcom, support 2G/3G/4G.
Size/mm 160 x 105 x 27
Weight 0.3kg
Power consumption --
Ingress protection IP 41
Power supply Local power supply
DC 12V/1A


Working/Storage Tempreture 0℃~40℃
-40℃~70℃
Working/Storage Humidty 5%~95%(uncondensed)
Wireless Specification Support 802.11a/b/g/n/ac/ac wave 2
Support DHCP/PPPOE dial
Support VPN
Support IPV6
Support VLAN grouping
L2/L3 roaming
Support relay network bridge
Support channel/power adjusting automatically
Support TKIP and AES (CCMP)
Support black/white list.
Connection method L2/L3 broadcast discovery
DHCP option 43
DNS domain name discovery
Search for controller IP dynamically through webAgent Technology.

Unit Termasuk

Unit Utama
