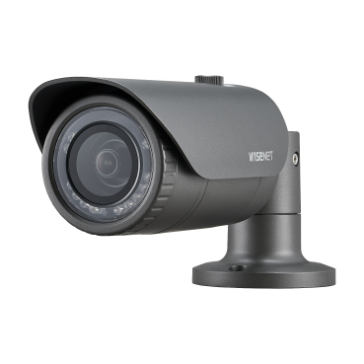

Wisenet AHD Camera HCO-7030RA
RP. 3,025,000
- QHD (2560 x 1440, 30fps) resolution
- 0.27 [email protected] (Colour),0 Lux (B/W : IR LED on)
- Built-in 6.0mm fixed lens
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 30m
- Transmission distance max.500m
- Easy installation (Plug & play), IP66, IK10
| Video | ||
|---|---|---|
| Imaging Device | 1/3" 4MP CMOS | |
| Effective Pixels | 2688(H)x1520(V) | |
| Min. Illumination | Color: 0.27Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
|
| Video Out | BNC(AHD), additional CVBS for installation(2Pin connector type) | |
| Lens | ||
| Focal Length (Zoom Ratio) | 6.0mm fixed | |
| Max. Aperture Ratio | F2.0 | |
| Angular Field of View | H: 49.01˚, V: 27.61˚, D: 55.60˚ | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Operational | ||
| IR Viewable Length | 30m(98.43ft) | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | UserBLC, HLC, DWDR | |
| Digital Noise Reduction | 2DDNR | |
| Motion Detection | 4 zones | |
| Privacy Masking | 2 zones | |
| Gain Control | Low / Middle / High / Very High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) | |
| Video Rotation | H-Rev/V-Rev | |
| Analytics | Motion detection | |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) | |
| Network | ||
| Resolution | 2560x1440 | |
| Max. Framerate | 30fps@4M(N), 25fps@4M(P) | |
| Environmental | ||
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C |
|
| Certification | IP66, IK10 | |
| Electrical | ||
| Input Voltage | 12VDC | |
| Power Consumption | Max 5W | |
| Mechanical | ||
| Color / Material | Dark Gray / Aluminum | |
| Product dimensions / weight | Ø70.0 x 246.0mm(Ø2.76”x9.69”), 670g(1.48 lb) | |
|
Unit Termasuk |
Unit Utama |
