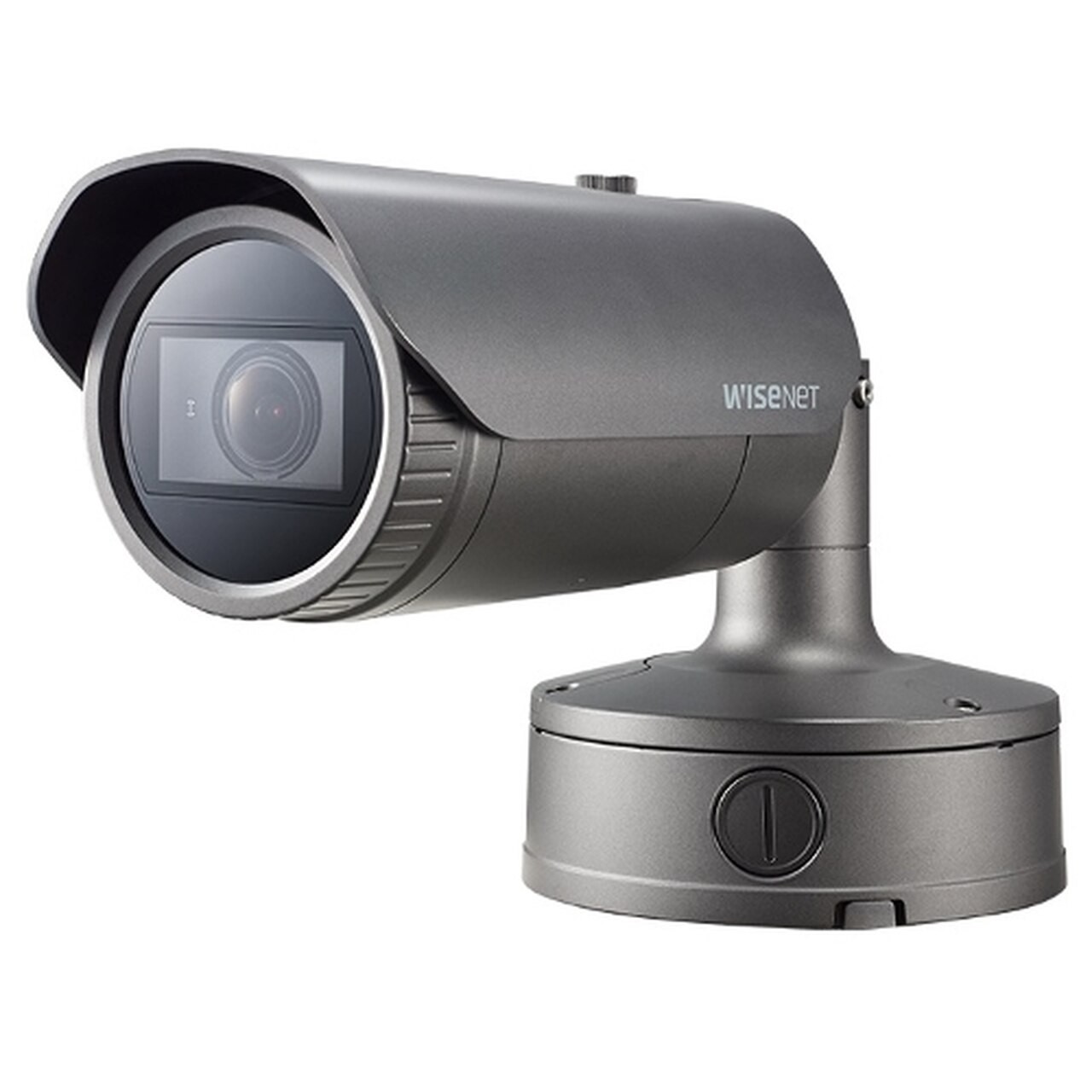

Wisenet X Series XNO-6085R
RP. 24,420,000
  • Max 2MP @ 60fps
  • Motorized vari-focal 4.1~ 16.4mm (FOV: 100°~26.2°)
  • ½” CMOS sensor with F0.94 Lens (wide)
  • Built-in IR with 229’ range or 70m
  • Triple codec: H.265, H.264 and MJPEG multiple streaming
  • WiseStream II compression technology
  • WDR 150dB @30fps, 120dB @60fps
  • Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
  • Hallway view, sound classification
  • Dual SD cards
  • Gyro sensor for digital image stabilization
  • IP66/67 NEMA 4X, IK10
  • Power: PoE or 12VDC/24VAC
Video
Imaging Device 1/2" 2MP CMOS
Effective Pixels 1945(H)x1097(V)
Min. Illumination Color: 0.004Lux(F0.94, 1/30sec)
BW: 0Lux(F0.94, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.1~16.4mm(4x) motorized varifocal
Max. Aperture Ratio F0.94(Wide)~F2.4(Tele)
Angular Field of View H: 100.0°(Wide)~26.2°(Tele) / V: 54°(Wide)~14.8°(Tele) / D: 116.0°(Wide)~30.0°(Tele)
Min. Object Distance 0.7m(2.30ft)
Focus Control Simple focus
Lens Type DC auto iris
Operational
IR Viewable Length 70m(229.66)
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
DPTZ preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory 1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -35°C
Storage Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Certification IP67, IP66, NEMA4X, IK10
Electrical
Input Voltage PoE(IEEE802.3af, Class3), 12VDC, 24VAC
Power Consumption PoE : Max 12.95W
12VDC : Max. 11.5W
24VAC : Max. 14.5W
Mechanical
Color / Material Dark gray / Aluminum
Product dimensions / weight Ø91x388.6mm(3.85"x15.3"), 2.35kg(5.18 lb)

Unit Termasuk

Unit Utama
