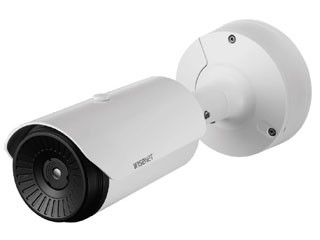

Wisenet Thermal Camera TNO-4040T
RP. 173,470,000
  • Max. 640 x 480 resolution support
  • Built-in 19mm fixed lens
  • H.265, H.264, MJPEG codec
  • Max. 30fps@all resolutions (H.265, H.264, MJPEG)
  • Motion detection, Handover, Tampering, Loitering
  • Directional detection, Audio detection, Shock detection
  • SD / SDHC / SDXC memory slot (Max. 256GB)
  • Hallway View, WiseStreamII support
  • PoE, 24V AC, 12V DC
  • IP66, NEMA4X, IK10
Video
Imaging Device Uncooled micro bolometer
NETD <50mK
Pixel size 17㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 19mm fixed focal
Max. Aperture Ratio F1.0
Angular Field of View H: 32° / V: 24.3° / D: 39.2°
Min. Object Distance 11m(36.09ft)
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color Palettes Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Resolution 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory 1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / 90% RH 이하
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / 90% RH 이하
Certification IP66, IK10, NEMA4X
Electrical
Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power Consumption PoE: Max. 10W, typical 8.6W
12VDC: Max. 9W, typical 7.5W
24VAC: Max. 10.5W, typical 8.9W

Unit Termasuk

Unit Utama
