| Package contents |

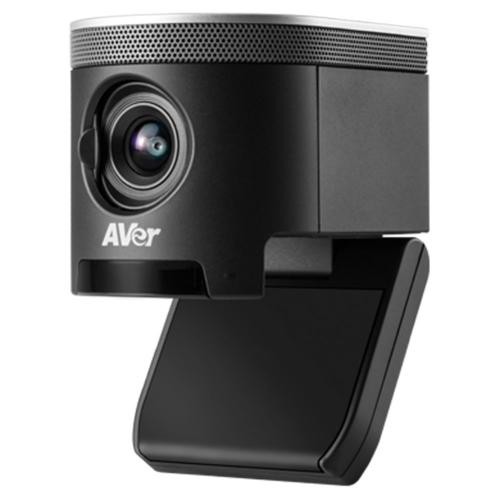

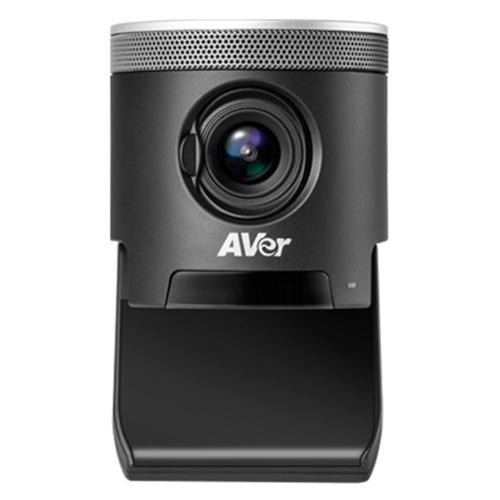

- USB3.0 4K camera
- Power adapter (for USB 2.0 usage)
- USB3.0 type-C to type-A (6ft) cable
- USB3.0 type-A to type-C adapter
- Quick guide
|
| Camera |
- Sensor: 1/2.5" Sony Exmor R™ 4K CMOS sensor
- Frame rate: 4K 25fps; 1080p, 720p, 960x540, 848x480, 640x480, 640x360, 424x240, 320x240, 320x180 at 60, 30, 15 fps
- Lens iris, focus, zoom: fixed
- AE, white balance: auto, manual override by PTZApp
- Lens focal length: 3.37 mm +/- 5%
- Lens F#: 2.8
- Field of view: diagonal 94°, horizontal 85°, vertical 55°
- S/N ratio: > 50dB
- Minimal illumination: 1.4 lx (50 IRE, F2.8, shutter 1/30)
- 2D noise reduction
- Back light compensation
- Minimum working distance: 80cm
|
| Zoom, Pan and Tilt Movement |
- Zoom: up to 4X leveraging 4K sensor (not available in 4K or 60 fps)
- Pan and tilt: when zoom in leveraging 4K sensor
|
| Microphone |
- 1 uni-directional microphones
- Frequency response: 100~12K Hz
- Sensitivity: -37dB
|
| Connectors |
- USB type-C connector
- DC jack for power adapter (for USB2.0 connection)
- 3.5mm audio jack for line output
- Reset button
|
| Video Format |
|
| USB |
- 2.0, 3.0, type-C
- UVC (USB Video Class) 1.1
- UAC (USB Audio Class) 1.0
|
| Control |
- UVC
- PTZApp
- Optional IR remote control (compatible with CAM520/VC520 remote control)
|
| Security and Mount |
- Built-in TV mount (above TV, up to 46mm deep)
- Kensington slot
- 1/4" tripod mounting screw
|
| Other Features |
- Privacy shutter door
- Infra-red receiver supports optional CAM520/VC520 remote control
|
| System Requirement |
- Windows 7/8/8.1/10
- Google Chromebook version 29.0.1547.70 Platform 4319.79.0
- Mac OS X 10.7 or higher
|
| Hardware Spec |
- 2.4GHz Intel Core 2 Duo processor
- 2GB RAM or more
- 4K or 1080p 60fps require higher system configuration
- USB 2.0 port and above (USB 3.0 required for 4K or 60fps)
|
| Power Adaptor |
- AC 100V ~240V, 50/60Hz
- Consumption: EIAJ 5V, 2A
|
