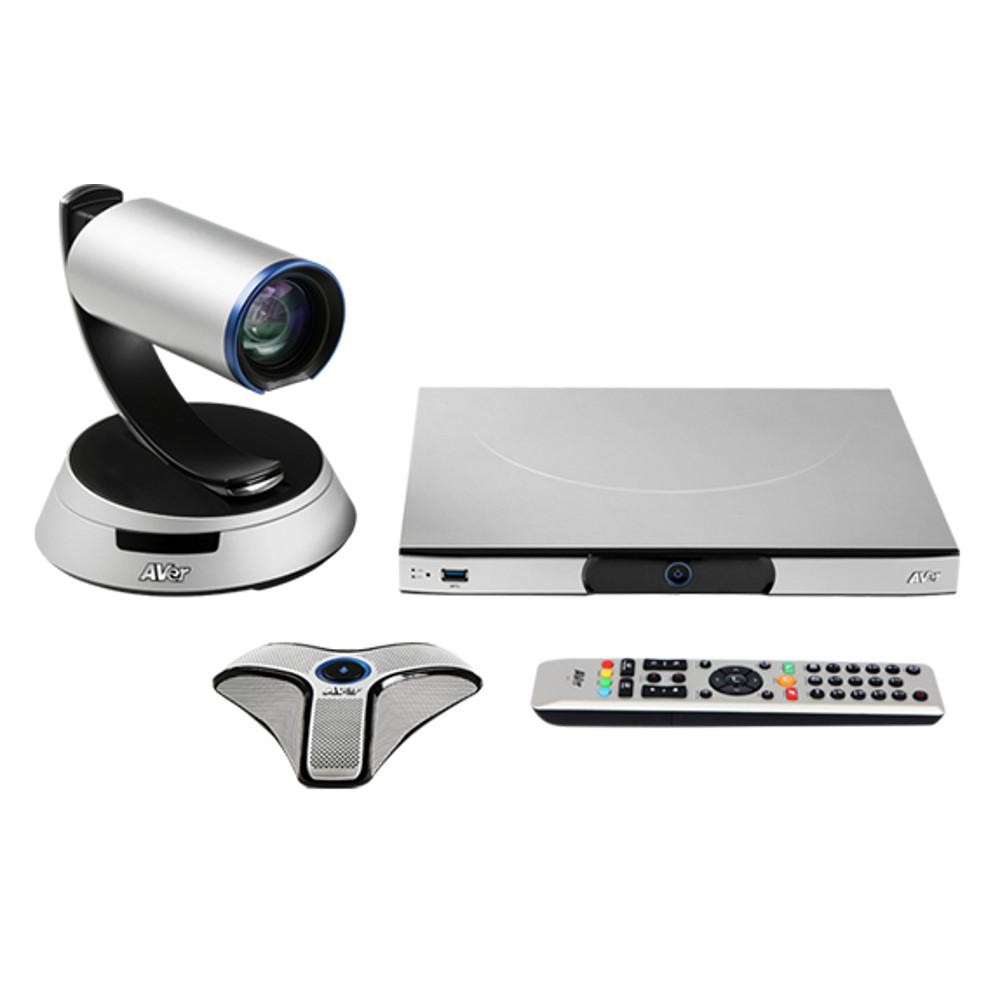

| Package contents |
- Main system unit (codec)
- eCam PTZ III camera
- SVC microphone array
- IR remote control with batteries
- Power supply (12V/6.25A)
- VGA cable (1.8M)
- Power cord (1.8M)
- Camera cable (3M)
- Microphone cable (5M)
- Network cable (3M)
- HDMI cable X 2 (3M)
- Warranty card
- Quick guide
|
| Communications |
- H.323, SIP standards, SIP TLS
- Microsoft Lync 2013, Skype for Business 2016
- WebRTC (License Required)
- Mixed protocols between H.323, SIP, Microsoft Lync 2013, Skype for Business 2016, WebRTC
- Call Quality bandwidth 64Kbps ~ 8Mbps
- RJ45 network LAN (10/100/1000)
- Manual bandwidth settings
- Manual Max. bandwidth settings
- Up to 60 Mbps (On 16-Way Multipoint Call)
|
| Camera |

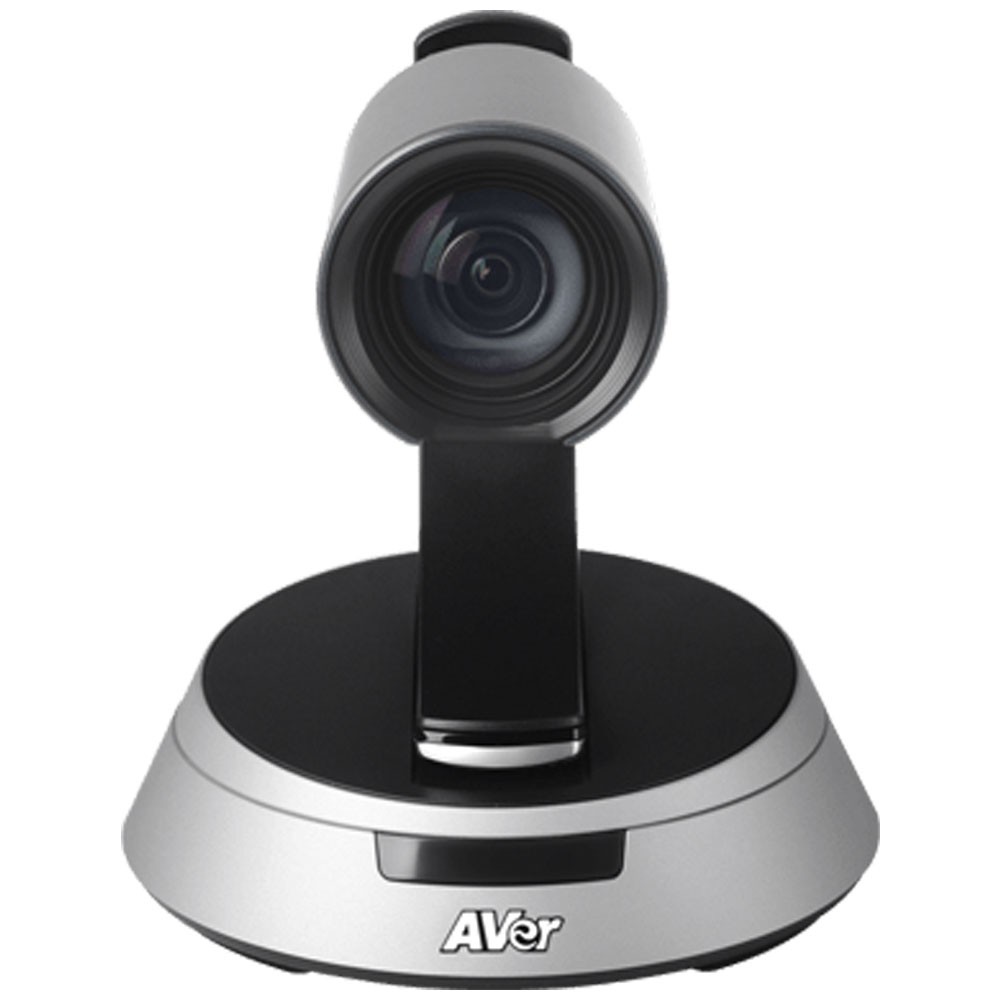

- eCam PTZ III camera
- 2-megapixel CMOS sensor
- 18X total zoom
- ±110° pan; +25°/-25° tilt
- 72° FOV (H); 43° FOV (V); 82° FOV (diagonal)
|
| People video resolutions |
- HD1080p (1920 x 1080), up to 60fps; HD720p (1280 x 720); 480p (848 x 480); 4CIF (704 x 576); CIF (352 x 288); SIF (352 x 240); All resolutions at 30fps
|
| Content video resolutions |
- HDMI supported resolutions:
- 1080p (1920 x 1080); 720p (1280 x 720); D1 (720 x 480); SXGA (1280 x 1024); XGA (1024 x 768); SVGA (800 x 600); VGA (640 x 480)
- DVI (digital) supported resolutions:
- 1080p (1920 x 1080); 720p (1280 x 720); D1 (720 x 480); SXGA (1280 x 1024); XGA (1024 x 768); SVGA (800 x 600); VGA (640 x 480)
- Output resolutions:
- Up to HD1080p (1920 x 1080) at 60 fps
|
| Video |
- Video Standards:
- H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261; H.239 dual video streams; BFCP content sharing; RTMP for live video streaming; Forward Error Correction (FEC); Anti 30% video packet loss with FEC
- Video Features:
- Video Inputs:
- Main camera eCam PTZ III; HDMI for 2nd camera; DVI-I/VGA for presentation; HDMI for presentation
- Video Outpus:
|
| Audio |
- Audio Standards:
- G.711, G.722, G.722.1, G.728, G.722.1C, G.729, AAC-LD
- Audio Features:
- Automatic gain control (AGC); Advanced noise reduction; Acoustic echo cancellation (AEC)
- Audio Inputs:
- Microphone pickup range of 6m, daisy chain up to 4; HDMI; Line-in (3.5 mm)
- Audio Outputs:
|
| Other Supported Standards |
- H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
- RTP, RTCP, H.350,SRTP, H.235, SNMP, NTP
|
| Network |
- 10/100/1000Mbps
- NAT/firewall traversal (H.460)
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- Network test
- Quality of service (QoS)
- VLAN (802.1Q / 802.1P)
- EAP 802.1x
|
| Web management tool |
- Remote management
- Live monitoring
- Firmware update
- Phonebook download/upload/edit
- Restore system settings
- Export call history
|
| Software Options |
- 2,4,6,8,10 multipoint license for up to maximum 16 sites
- WebRTC License
|
| Security |
- AES (Advanced Encryption Standard) function (128-bit)
- Password protection for system settings
- Password protection for remote system management
|
| Power Supply |
- AC 100V ~240V, 50/60Hz
- Consumption: EIAJ 12V, 6.25A
|
