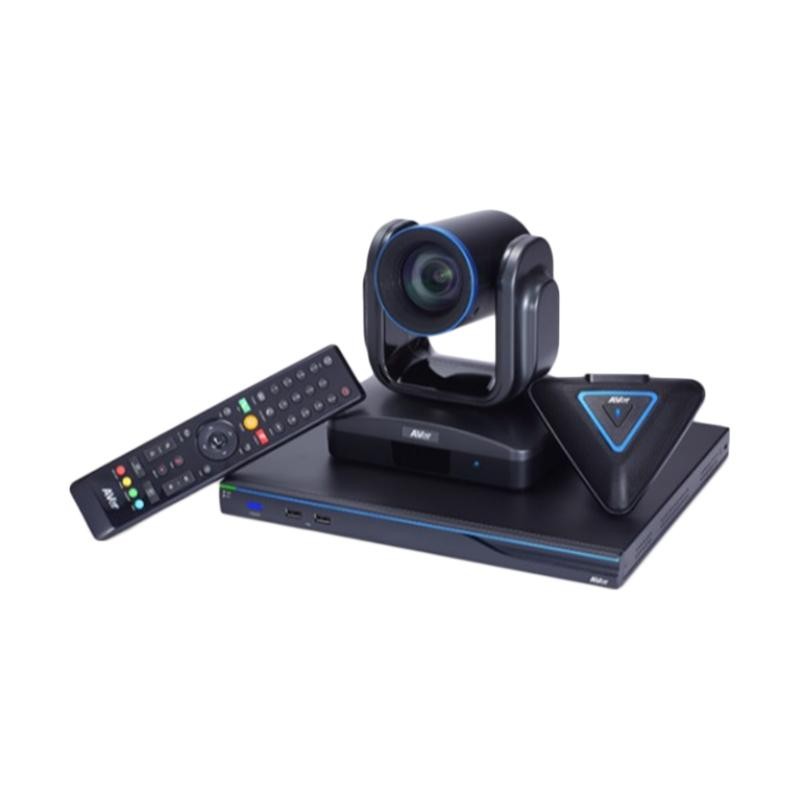

| Package Contents |
- Main system unit (codec)
- The New eCam PTZ camera
- EVC microphone array
- IR remote control with batteries
- Power supply (12V/5A)
- VGA cable (3M)
- Power cord (1.8M)
- Camera cable (3M)
- Microphone cable (5M)
- Network cable (3M)
- HDMI cable (3M)
- Warranty card
- Quick guide
|
| Communications |
- H.323, SIP and SIP TLS standards
- 64Kbps~4Mbps
- RJ45 network LAN (10/100/1000)
- Manual bandwidth settings
|
| Camera |
- Support for single camera*
- The New eCam PTZ camera :
- 2-mega pixel CMOS sensor
- 18X total zoom
- ±130° pan; +90°/-25° tilt
- Field of view (H): 72°
- Field of view (V): 43°
- Field of view (Diagonal): 82°
|
| People Video Resolutions |
- HD1080p (1920 x 1080); HD720p (1280 x 720)
- 480p (848 x 480); 4CIF (704 x 576); 4SIF (704 X 480); 360p (640 X 360); W288p (512 x 288); CIF (352 x 288); SIF (352 X 240); All resolutions at 30fps
|
| Content Video Resolutions |
- Supported Resolutions: WXGA (1440 x 900); HD (1360 x 768); SXGA (1280 x 1024); SXGA (1280 x 960); WXGA (1280 x 800); XGA (1024 x 768); SVGA (800 x 600); VGA (640 x 480)
- Output Resolutions:
- HD720p (1280 x 720) up to 30fps
|
| Video |
- Video Standards: H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261 (available with future firmware upgrade); H.239 dual video streams; BFCP content sharing
- Video Inputs: EVC eCam camera; VGA
- Video Outputs: HDMI; VGA
|
| Audio |
- Audio Standards:G.711, G.722, G.722.1, G.728, G722.1C licensed from Polycom®
- Audio Features: Automatic gain control (AGC); Advanced noise reduction; Acoustic echo cancellation (AEC)
- Audio Inputs: EVC microphone daisy chain up to 4; Line-in (3.5 mm)
- Audio Outputs: Digital audio on HDMI cable; Line-out (3.5 mm)
|
| Other Supported Standards |
- H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
|
| Networking |
- 10/100/1000Mbps
- NAT/firewall traversal
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- QoS
- Network Test
|
| Security |
- AES (Advanced Encryption Standard) function (128-bit)
- Password protection for system settings
- Password protection for remote system management
|
| Web Management Tool |
- Remote management through the Web
- Live monitoring via the web
- Firmware update via Ethernet/Internet
- Phonebook download/upload/edit
- Restore system settings
|
| Power Supply |
- AC 100V~240V, 50/60Hz
- Consumption: EIAJ 12V, 4A
|
