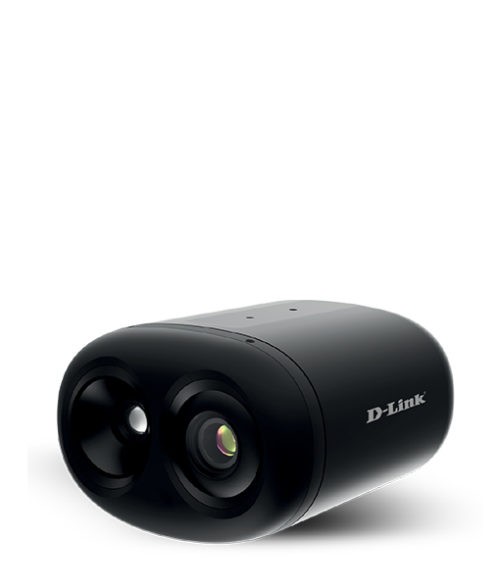

CCTV Thermal D-Link DCS-F04TH (Pengukur Suhu Tubuh)
RP. 430,000,000

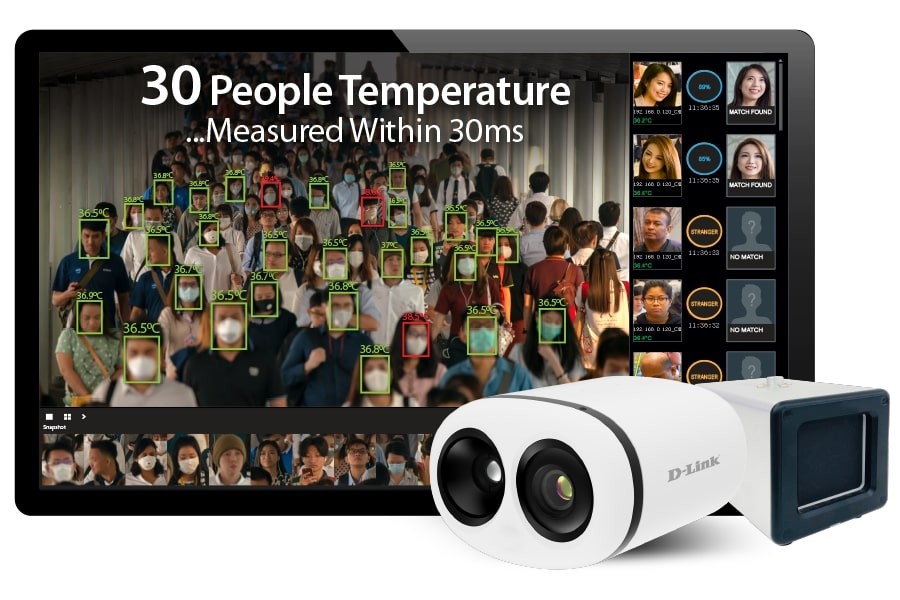

• On-board temp-detection algorithm • One IP address two channels • Effective pixels 320×240 • Sensitivity 50mK • Thermal: 8mm Fixed lens, Visible: 2.7-12mm motorized lens • Accuracy 0.3C • Body detection, up to 16 Targets • Response Time 50ms • 14 color control

Detector Type   • Uncooled IRFPA Microbolometer
Effective Pixels   • 320(H) ×240(V)
Pixel Size   • 20um
Thermal Sensitivity (NETD)   • ≤50mK @F1.0, 300K
Spectral Range   • 8~14um
Image Setting   • Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes   • Black-Heat /White-Heat/Rainbow/Iron-Red up to 14 modes
Lens Type   • Fixed
Focus Control   • Manual Focus
Focal Length   • 8mm
F No.   • F1.0
Angle of View   • H: 44°, V:33°
Image Sensor   • 1/2.8" Sony CMOS
Effective Resolution   • 1920(H)×1080(V)
Ethernet   • 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface   • 1ch Audio In,1ch Audio Out
Alarm   • 2ch Alarm In,2ch Alarm Out
RS485   • Support
BNC Output   • N/A
Reset Button   • Support (Built-in)
Power Supply   • DC12V/POE (IEEE 802.3af)
Power Consumption   • Max 10W
Operating Temperature   • -30°C~60°C(-22°F~140°F)
Storage Conditions   • 0~ 90% RH
Certifications   • CE /FCC
Ingress Protection   • IP66
Casing   • Metal
Dimensions   • 210×173×120mm
Net Weight   •2Kg

-    1 years replacement parts Warranty
-    Price include Camera and Black box, exclude bracket/PC/cable
