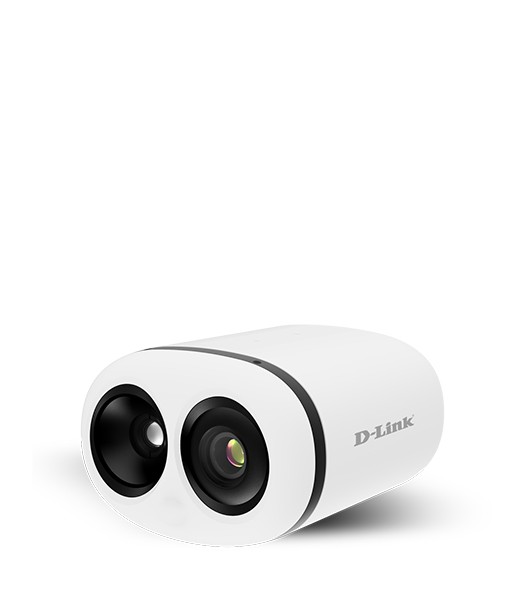

CCTV Thermal D-Link DCS-F05TH (Pengukur Suhu Tubuh) -

CCTV Thermal D-Link DCS-F05TH (Pengukur Suhu Tubuh)

RP. 450,000,000

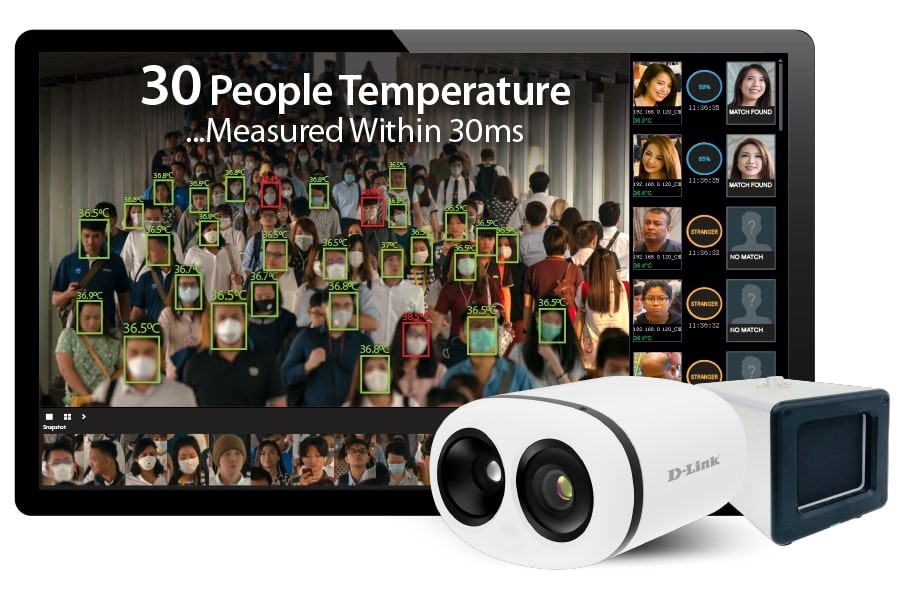

• On-board temp-detection algorithm • One IP address two channels • Effective pixels 400×300 • Sensitivity 40mK • Thermal: 8mm Fixed lens, Visible: 2.7-12mm motorized lens • Accuracy 0.3C • Body detection, up to 30 Targets • Response Time 30ms • 17 color control

Deskripsi
Informasi Tambahan

Detector Type		• Uncooled IRFPA Microbolometer
Effective Pixels		• 400(H) ×300(V)
Pixel Size		• 17um
Thermal Sensitivity (NETD)		• ≤40mK @F1.0, 300K
Spectral Range		• 8~14um
Image Setting		• Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes		• Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
Lens Type		• Fixed
Focus Control		• Manual Focus
Focal Length		• 8mm
F No.		• F1.0
Angle of View		• H: 46°, V:35.3°
Image Sensor		• 1/1.9" Sony CMOS
Effective Resolution		• 1920(H)×1080(V)
Ethernet		• 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface		• 1ch Audio In,1ch Audio Out
Alarm		• 2ch Alarm In,2ch Alarm Out
RS485		• Support
BNC Output		• N/A
Reset Button		• Support (Built-in)
Power Supply		• DC12V/POE (IEEE 802.3af)
Power Consumption		• Max 10W
Operating Temperature		• -30°C~60°C(-22°F~140°F)
Storage Conditions		• 0~ 90% RH
Certifications		• CE /FCC
Ingress Protection		• IP66
Casing		• Metal
Dimensions		• 212×182×136mm
Net Weight		•2Kg
