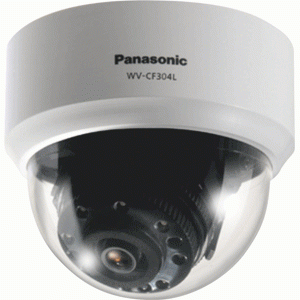

CCTV Panasonic iPro Analog WV-CF304LE IR Indoor Dome IP Security Camera
RP. 6,758,000
High resolution: 650 TV lines
High sensitivity with Day/Night function: 0.15 lx (Color), 0 lx(B/W, LED on) at F2.0. IR cut filter switches on/off to enhance the sensitivity in B/W mode. (WV-CF304L)
IR LED equipped: The equipped infrared LED makes it possible to take pictures at 0 (zero) lx.
IR LED irradiation distance 10 m (WV-CF304L)
LED AUTO mode : Control to the best brightness level automatically when the IR LED is ON.
ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.
|
NTSC/PAL |
PAL |
|
|---|---|---|
|
Image sensor |
1/3 CCD |
|
|
TV System |
650 |
|
|
Min. Illumination Color (lx) |
0.15 |
|
|
Min. Illumination B/W (lx) |
0 |
|
|
Super Dynamic / WDR / BLC |
BLC |
|
|
Day/Night |
Day / Night (ICR) |
|
|
ABF (Auto Back Focus) / Focus Assist |
Focus Assist |
|
|
IR LED |
Yes |
|
|
Digital Zoom |
2x |
|
|
Temperature (degree, Celsius) |
MAX |
50 |
| MIN |
-10 |
|
|
Power Source |
24V AC, 12V DC |
|
- Various adjustment features including BLC (Back-Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
- 2.8 mm Fixed Iris lens (WV-CF304L)
- 16 axis matrix color compensation function enables wider range of natural color adjustment.
- Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions.
- Electronic sensitivity enhancement: Auto (Up to 32x) (WV-CF304L)
- Digital zoom: Up to 2x
- Auto Image Stabilizer for applications where vibration or wind is a concern
- Internal synchronization
- Over the coaxial cable data communication
- 16 alphanumerics camera title display
- Multi language: English, French, Italian, Spanish, German, Russian, Chinese, Japanese
- Lens Distortion Correction
- On screen display menu
- ELC mode for easier lens adjustment upon installation
