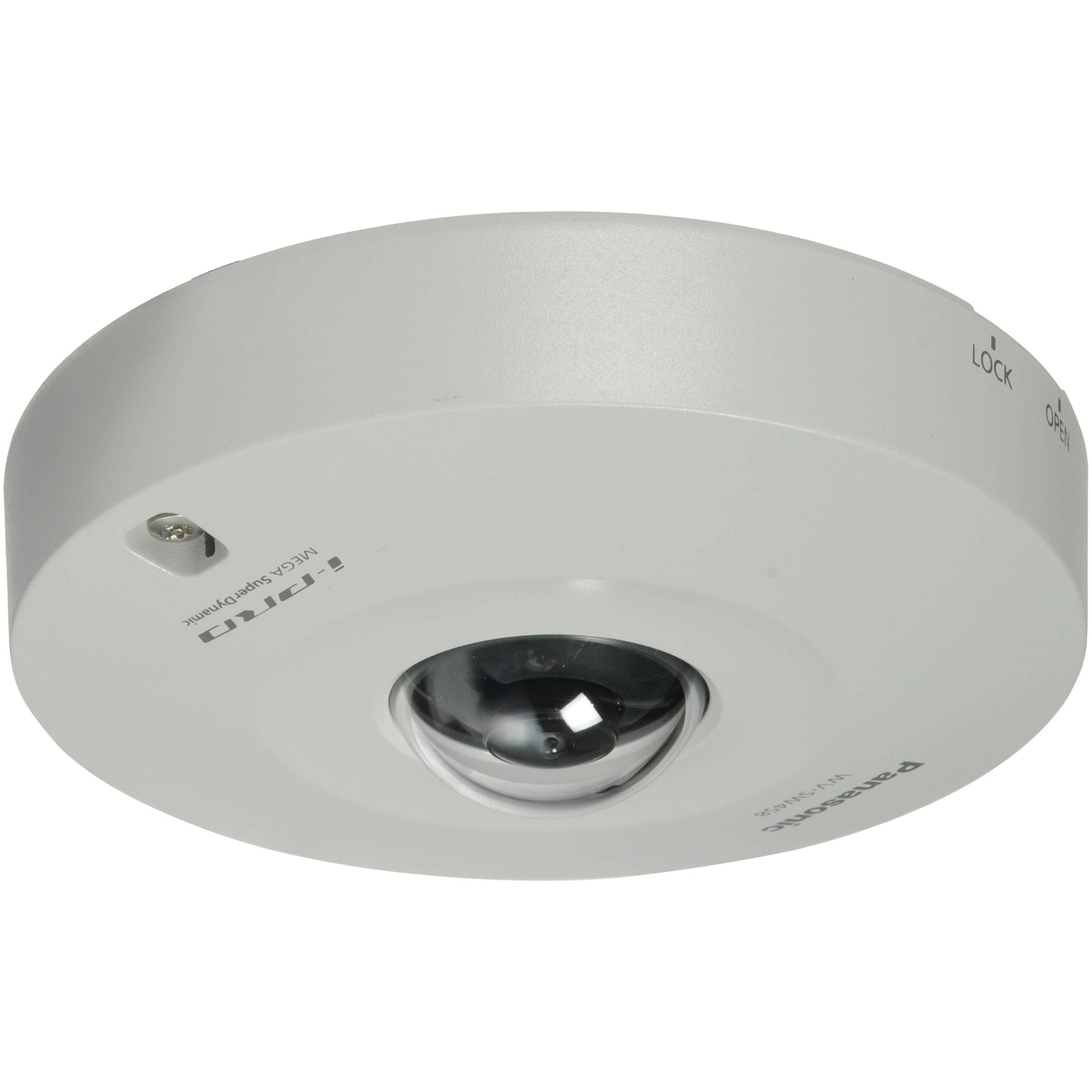

CCTV Panasonic iPro WV-SW458 3MP H.264 Indoor Dome IP Security Camera
RP. 33,000,000

• Double Panorama Mode When the camera is installed on the ceiling, the entire area under the camera is displayed as two 180° panoramic images. • Panorama Mode When the camera is installed on a wall, the 180° area in front of the camera is displayed as a panoramic image. Blind spots that occur at the left and right sides of the image when using a 104° horizontal wide-angle camera (WV-SW155) are captured clearly. • Quad PTZ Mode 4 VGA size (640 x 480 dot) images displayed on one screen. Images in all four directions from the camera installation location are displayed on one screen. You can click on areas within images that you want to see, display a 360° fisheye image at the side of the display, and move to positions that you want to see simply by clicking. • Single PTZ Mode Displays one quad VGA size (1280 x 960 dot) image. You change the display area by clicking the area you want to see in the image. • Fisheye Mode Displays full 360° fisheye images, enabling monitoring without blind spots. Shooting in all directions means that the path of everyone walking beneath the camera can be monitored. Images can be displayed in 3Mbps or 1.3 Mbps modes.

Indoor / Outdoor

Indoor

Image sensor

1/3 MOS

Min. Illumination Color (lx)

1.5

Min. Illumination B/W (lx)

1.2

Maximum Resolution

2MP – 3MP (1,080p / 2,048 x 1,536)

Maximum FPS

30

Super Dynamic

Yes

Image compensation

Adaptive Black Stretch, Digital noise reduction

Color/BW

Electrical

ABF(Auto back focus)/Auto Focus/Focus Assist

-

IR LED

-

Image Stabilizer

-

Corridor Mode

-

Privacy Zone

4

iA (Intelligent Auto)

-

Intelligent VMD (i-VMD)

Type1

Focal length

f=0.837mm, F2.4

Zoom ratio

-

Angular field of view (16:9)

H: 182 deg. V: 176 deg. (1:1)

Panning Range

-

Tilting Range

-

Network IF

10Base-T, 100Base-TX, RJ45 connector

Video Codec

H.264, JPEG

Transmission mode (H.265/H.264)

Constant bit rate, Advanced variable bit rate, Frame rate, Best effort

Smart Coding

-

Audio Support

Yes

Built-in microphone

-

Microphone/Line Input

Yes

Audio Output

Yes

SD memory Card Slot

SDXC

External I/O Terminals

Yes

Ambient Operating Humidity

Less than 90

Vandal Resistant

IK10 (IEC62262)

Water and Dust Resistance

IP66 (IEC60529), Type 4X(UL50), NEMA 4X

ClearSight Coating / Rain Wash Coating

-

Dehumidification device

Yes

Temperature (degree, Celsius)

MAX

50

MIN

-40

Temperature (degree, Fahrenheit)

MAX

122

MIN

-40

Power Source

PoE, 12V DC

SSL device certificate

-

ONVIF Profile

S

• 4 Stream Mode
Four VGA size (640 x 480 dot) images are transmitted. The operator sets the orientation beforehand
