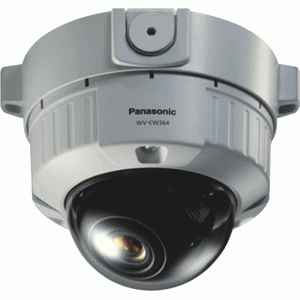

CCTV Panasonic iPro Analog WV-CW364SE IR Outdoor Dome IP Security Camera
RP. 9,625,000
High resolution: 540 TV lines
High sensitivity with True Day/Night function (WV-CW364) : 0.6 lx (Colour) : 0.05 lx (B/W)
ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.
Vandal resistant mechanism for high reliability
IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.
| Camera | Image Sensor | 1/3 type interline transfer CCD |
| Effective Pixels | 752 (H) x 582 (V) | |
| Scanning Mode | 2:1 interlace scan | |
| Scanning Area | 4.9 mm (H) x 3.7 mm (V) | |
| Scanning Frequency | Horizontal: 15.625 kHz Vertical: 50 Hz | |
| Scanning Line | 625 lines | |
| Horizontal Resolution | 540 TV lines (at centre) | |
| Minimum Illumination | WV-CW364S: Colour: 0.6 lx, B/W: 0.05 lx, F1.3 Wide WV-CW334SE: Colour: 0.6 lx, B/W: 0.4 lx, F1.3 Wide | |
| Signal-to-Noise Ratio | 50 dB (equivalent to AGC Off, Weight on) | |
| White Balance | ATW / AWC | |
| Back Light Compensation | ON / OFF | |
| Adaptive Black Stretch | ON / OFF | |
| Black and White Mode | WV-CW364S: ON (AUTO) / OFF (IR filter moving) WV-CW334SE: ON (AUTO) / OFF (No IR filter moving) | |
| Focus Adjustment | Manual | |
| Synchronization | Internal (INT), Multiplexed Vertical Drive (VD2) | |
| Lens | Focal Length | 2.8 mm ~ 10.0 mm, 3.6x varifocal |
| Angular Field of View | WV-CW364S: H: 100.5° (Wide) ~ 27.39° (Tele) V: 73.51° (Wide) ~ 20.45° (Tele) WV-CW334SE: H: 100.18° (Wide) ~ 27.39° (Tele) V: 73.33° (Wide) ~ 20.45° (Tele) | |
| Maximum Aperture Ratio | 1:1.3 (Wide) ~ 1:3.1 (Tele) | |
| Focusing Range | 1.2 m (3.9 ft.) ~ ∞ | |
| Pan and Tilt | Panning range | +180° ~ –140° |
| Tilting Range | ±75° | |
| Input/ Output | Video Output | 1.0 V [p-p] / 75 Ω, PAL composite, BNC connector |
| Monitor Output | 1.0 V [p-p] / 75 Ω / PAL composite signal / ø3.5 mm RCA jack | |
| General | Safty/EMC Standard | CE (EN60065, EN55022 ClassB, EN55024), GOST (R 51558) |
| Power Source and Power Consumption | 24 V AC 50 Hz, 2.9 W, 13.1 W *1 12 V DC, 250 mA *2 | |
| Ambient Operating Temperature | –10 °C ~ +50 °C (14°F to 122°F) –30 °C ~ +50 °C (-22°F to 122°F) *1 | |
| Ambient Operating Humidity | 90 % or less (without condensation) | |
| Water and Dust Resistance | IP66, IEC60529 measuring standard compatible *Applicable only when the installation and waterproof process are done properly. | |
| Impact Protection | IEC 60068-2-75 test Eh, 50J | |
| Dimensions | ø164 mm x 146 mm (H), 191.5 mm (Base Cover) (ø6-7/16" x 5-3/4" (H) x 7-9/16" (W))(Base Cover) | |
| Mass (approx.) | Main Body: 1.05 kg (2.31 Ibs), including camera attachment 100 g (0.22 Ibs), Mounting Base: 350 g (0.78 Ibs), Ceiling Mount Bracket: 700 g (1.55 Ibs) | |
| Note | *1 With optional Heater Unit WV-CW5H *2 Optional Heater Unit WV-CW5H cannot be used under 12 V DC operation. | |
- Various adjustment features including BLC (Back Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
- 2 White Balance modes are selectable with Dip Switch: ATW (Auto Tracking White Balance) / AWC (Automatic White Balance Control)
- 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
- Internal/Multiplexed Vertical Drive (VD2) synchronization
- Monitor output for easier lens adjustment upon installation
- 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
- Various mounting options: Flush mount, Surface mount and Embedded ceiling mount
- Optional heater maintains operating temperature –30 °C ~ +50 °C (–22 °F ~ 122 °F)
