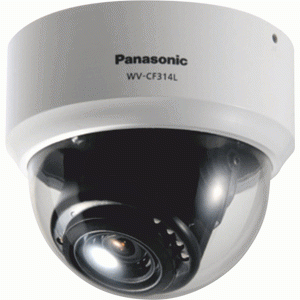

CCTV Panasonic iPro Analog WV-CF314LE IR Indoor Dome IP Security Camera
RP. 11,132,000
High resolution: 650 TV lines
High sensitivity with Day/Night(Electrical) function: 0.08 lx (Color), 0 lx (B/W LED on) at F1.3. IR cut filter switches on/off to enhance the sensitivity in B/W mode.
IR LED equipped : The equipped infrared LED makes it possible to take pictures at 0 (zero) lx. IR LED irradiation distance 20 m
LED AUTO mode : Control to the best brightness level automatically when the IR LED is ON
ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area
ABF (Auto Back Focus) ensures easy installation
|
Camera |
Image Sensor | 1/3 type interline transfer CCD |
| Effective Pixels | 976 (H) x 582 (V) | |
| Scanning Mode | 2:1 interlace | |
| Scanning Area | 4.8 mm (H) x 3.6 mm (V) {3/16 inches(H) x 1/8 inches(V) } | |
| Scanning Frequency | Horizontal: 15.625 kHz Vertical: 50.00 Hz | |
| Horizontal Resolution | 650 TV lines (typ.) | |
| Minimum Illumination | Color : 0.08 lx(color mode) B/W: 0.008 lx (black-and-white mode, LED OFF) B/W: 0 lx (black-and-white mode, LED ON |
|
| Signal-to-Noise Ratio | 52 dB (AGC: OFF | |
| White Balance | AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K | |
| Light Control | ALC/ALC+/ELC | |
| BLC | ON / OFF | |
| ABS | ON / OFF | |
| AGC | ON (LOW, MID, HIGH) / OFF | |
| Electronic Shutter | - | |
| Electronic Sensitivity UP | 32x max. AUTO, 512x max. FIX | |
| Day Night (IR) | AUTO1 / AUTO2 / ON / OFF | |
| LED | OFF / AUTO / FIX (available for D&N AUTO2 mode or D&N ON mode | |
| Digital Noise Reduction | high or low | |
| Scene File | 2 patterns | |
| Video Motion Detection | OFF / MOTION DET / SCENE CHANGE | |
| Privacy Zone | ON(1) / ON(2) / OFF | |
| Image Stabilizer | ON / OFF | |
| Auto Focus | Lens AF / MANUAL | |
| IR LED irradiation distance | 20 m | |
| Synchronization | Internal (INT) | |
|
Lens |
Focal Length | 2.8 mm ~ 10.0 mm |
| Zoom Ration | 3.6x | |
| Angular Field of View | H: 100° 50' (Wide) ~ 27° 39'(Tele) V: 73° 51' (Wide) ~ 20° 45' (Tele) |
|
| Maximum Aperture Ratio | F1.3 (Wide) ~ F3.1 (Tele | |
| Focusing Range | 0.3 m ~ ∞ | |
|
Input / Output |
Video Output | 1.0 V [p-p] / PAL composite 75 |
| Controller Interface | Coaxial Multiplex System | |
|
General |
Setup Method | OSD setup menu |
| Language | English, French, Italian, Spanish, German, Russian, Chinese, Japanese | |
| Power Source and Power Consumption | 24 V AC: 3.6 W, 12 V DC: 410 mA (LED ON) | |
| Ambient Operating Temperature | –10 °C ~ +50 °C (14 °F ~ 122 °F) | |
| Ambient Operating Humidity | 90 % or less (without condensation) | |
| Dimensions | ø123 mm x 106 mm (ø4-27/32 inches x 4-3/16 inches) | |
| Mass (approx.) | 390 g (0.86 lbs.) | |
| Finish | White (N5040-b1) |
- Various adjustment features including BLC (Back-Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
- 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
- 16 axis matrix color compensation function enables wider range of natural color adjustment.
- Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions
- Electronic sensitivity enhancement: Auto (Up to 32x) / Fix (Up to 512x)
- Electronic shutter from 1/120 to 1/120,000 sec
- Digital zoom: Up to 2x
- Auto Image Stabilizer for applications where vibration or wind is a concern
- Internal synchronization
- Over the coaxial cable data communication
- 16 alphanumerics camera title display
- Multi language: English, French, Italian, Spanish, German, Russian, Chinese, Japanese
- Lens Distortion Correction
- On screen display menu
- ELC mode for easier lens adjustment upon installation
