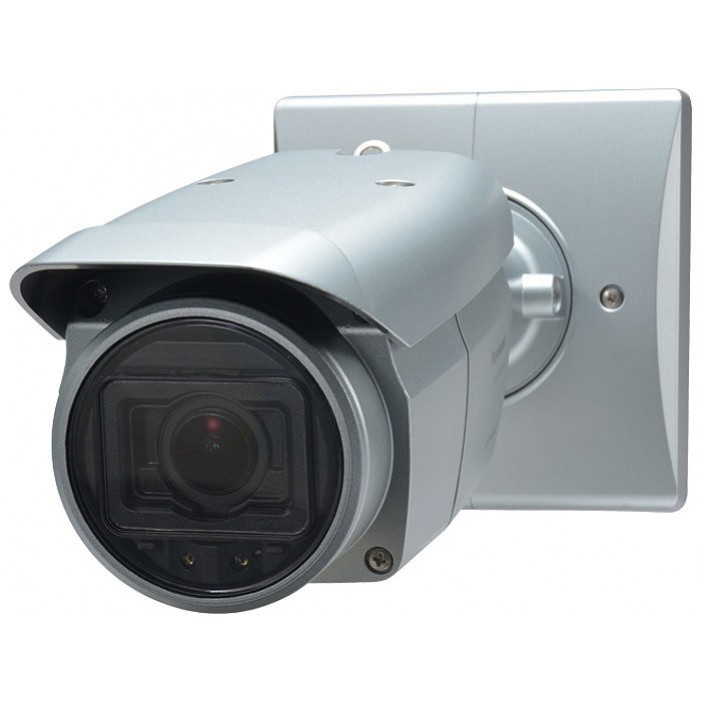

CCTV Panasonic iPro Extreme WV-S1511LN IR H.265 Outdoor Box IP Security Camera
RP. 37,400,000
HD 720p 60fps iA (intelligent Auto) Extreme Super Dynamic 144dB Color night vision (0.0005 to 0.008 lx) H.265 Smart Coding FIPS 140-2 Level 1 compliant Clear Sight Coating
Camera
| Sensor | 1.3 MP 1/3" MOS |
| Focal Length | 2.8 to 10mm |
| Maximum Aperture | f/1.6 - f/3.4 |
| Zoom | Optical: 3.6x |
| Lens Field of View | Horizontal: 112 to 31° Vertical: 60 to 17° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0005 Lux B&W: 0 Lux |
| Shutter Speed | 1/10,000 to 1/30 Seconds |
| Camera Angle Adjustment | Horizontal: -180 to 180° Vertical: 0 to 100° |
Video
| Streaming Resolution | 1280 x 960 at 30 fps 1280 x 720 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 4 Streams |
| Automatic Gain Control | Yes |
Audio
| Streaming | Two-Way |
| Audio Formats | AAC, G.711, G.726 |
| External Audio Input | 3.5 mm |
| External Audio Output | 3.5 mm |
Networking
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles S & G |
| Analytics | Video Motion Detection |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
System Requirements
| Mobile Operating Systems | iOS, Android |
Environmental
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 10 to 100% |
| IP Rating | IP66 |
| IK Rating | IK10 |
General
| Recording Media | SD (up to 256 GB) |
| Pan/Tilt | None |
| Alarm I/O | 3 / 2 |
| I/O Connections | 1 x RJ45 1 x Power 1 x BNC |
| IR Range | 131.23' / 40 m |
| Supported Languages | English French German Italian Japanese Portuguese Russian Simplified Chinese Spanish |
| Internal Storage | None |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 9.4 W |
| Material of Construction | Aluminum, Polymer |
| Dimensions | H: 5.1 x W: 5.1 x L: 13.3" / H: 130.0 x W: 130.0 x L: 337.0 mm |
| Weight | 3.53 lb / 1.6 kg |
Packaging Info
| Package Weight | 6.4 lb |
| Box Dimensions (LxWxH) | 19.7 x 7.3 x 6.5" |
