RP. 113,300,000
• Full-HD 1920x1080 60fps • ClearSight Coating • Durable Pan/Tilt gear mechanism • iA (intelligent Auto) • Extreme Super Dynamic 144dB • Color night vision (0.001 to 0.015 lx) • IP66, IK10 certified • Wider operating temperature range -40°C to +60°C (-40°F to +140°F) *When using 24 V AC power supply
| Camera | Image Sensor | Approx. 1/2.9 Type MOS image sensor | |
| Minimum Illumination | Color : 0.015 lx, BW : 0.006 lx (F1.6, Maximum shutter : Off (1/30s), AGC : 11) |
||
| Color : 0.001 lx, BW : 0.0004 lx (F1.6, Maximum shutter : Max. 16/30s, AGC : 11) *1 |
|||
| Intelligent Auto | On / Off | ||
| Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only. |
||
| Super Dynamic*2 | On / Off, the level can be set in the range of 0 to 31. | ||
| Dynamic Range | 144 dB (Super Dynamic : On) | ||
| Image Settings | Gain (AGC), White balance | ||
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | ||
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | ||
| Video Motion Detection(VMD) | On / Off, 4 areas available | ||
| Intelligent VMD (i-VMD)*3 | Type 4 *optional plug-in software WV-SAE200 | ||
| Stabilizer*3 | On / Off (available only in the 30 fps mode) | ||
| Privacy Zone | Filling / Pixelate / Off (up to 32 zones available) | ||
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) | ||
| Lens | Zoom Ratio | 21x Optical, 31x with HD Extra Optical Zoom(Resolution 1280×720) | |
| Digital (electronic) zoom | 16x | ||
| Focal length | 4.0 mm – 84.6 mm {5/32 inches – 3-11/32 inches} | ||
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.5 (TELE) | ||
| Focus range | 1.5 m {4ft 11-1/16 inches} – | ||
| Angular Field of view | [16 : 9 mode] Horizontal : 3.4 ° (TELE) – 73 ° (WIDE) Vertical : 2.0 ° (TELE) – 42 ° (WIDE) [4 : 3 mode] Horizontal : 2.9 ° (TELE) – 61 ° (WIDE) Vertical : 2.2 ° (TELE) – 46 ° (WIDE) |
||
| Pan/tilt | Panning Range | 0° – 350° | |
| Panning Speed | Manual : Approx. 0.5 °/s - 100 °/s Preset : Up to approx. 300°/s | ||
| Tilting Range | Operational range : –30 ° – 90 ° (level – downward) Recommended range*4 : 0 ° – 90 ° Selectable tilting angle : 10 °/ 5 °/ 3 °/ 0 ° *5/ –3 ° *5/ –5 ° *5/ –10 ° *5/ –15 ° *5/ –20 ° *5/ –25 ° *5/ –30 ° *5 |
||
| Tilting Speed | Manual : Approx. 0.5 °/s - 100 °/s Preset : Up to approx. 100°/s | ||
| Preset Positions | 256 positions | ||
| Auto Mode | Auto track*3/ Auto pan/ Preset sequence/ Patrol | ||
| Self Return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min | ||
| Browser GUI | Camera Control | Pan/Tilt, Zoom, Focus, Auto mode, Brightness, Preset, AUX, Rec. on SD, Log, Viewer software | |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
||
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | ||
| Network | Network IF | 10Base-T / 100Base-TX, RJ45 connector | |
| Resolution H.265/ H.264 JPEG (MJPEG) | •2 mega pixel [16 : 9] (30/60 fps) 1920×1080, 1280×720, 640×360, 320×180 |
||
| •3 mega pixel [4 : 3] (30 fps) 2048×1536*, 1280×960, 800×600, VGA, 400×300, QVGA *Used by super resolution techniques |
|||
| H.265/H.264*6 | Transmission Mode | Constant bit rate / VBR / Frame rate / Best effort | |
| Transmission Type | Unicast / Multicast | ||
| JPEG | Image Quality | 10 steps | |
| Smart Coding | Smart Facial Coding*3 : On(Smart Facial Coding)/ On(AUTO VIQS)/ Off * Smart Facial Coding is only available with Stream(1). |
||
| GOP(Group of pictures) control : On(Advanced)*/ On(Low)/ On(Mid)/ Off * On(Advanced) is only available with H.265. |
|||
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps, G.711 : 64 kbps, AAC-LC*7 : 64 kbps / 96 kbps / 128 kbps |
||
| Audio transmission mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) | ||
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
||
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) | ||
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD memory card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB** 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
||
| Mobile Terminal Compatibility | iPad / iPhone, AndroidTM mobile terminals | ||
| Alarm | Alarm Source | 3 terminals input, VMD alarm*8, Command alarm, Audio detection alarm, Auto track alarm | |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic protocol output | ||
| Input/Output | Audio Input | ø3.5 mm stereo mini jack (stereo input) Input impedance: Approx. 2 k (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 4.0 V ±0.5 V |
|
| Audio Output*9 | ø3.5 mm stereo mini jack (stereo output) Output impedance : Approx. 600 (unbalanced) |
||
| External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
||
| General | Power Source and Power Consumption | AC24 V(50 Hz/60 Hz), 2.7 A Approx. 43 W PoE+ (IEEE802.3at) DC 54 V 430 mA, Approx. 22 W(Class4 device) |
|
| Ambient Operating Temperature | -40 °C to +60 °C {-40 °F to +140 °F} (AC 24 V) -30 °C to +60 °C {-22 °F to +140 °F} (PoE+ device) {Power On range: -30 °C to +60 °C (-22 °F to +140 °F)} |
||
| Ambient Operating Humidity | 10 to 100 % (no condensation) | ||
| Water and Dust Resistance | IP66 (IEC60529), Type 4 (UL50), NEMA 4 compliant | ||
| Shock Resistance | IK10 (IEC62262) | ||
| Dimensions | Maximum ø229 mm × 393 (H) mm{ø9-1/32 inches × 15-15/32 inches (H)} | ||
| Mass (approx.) | Approx. 4.8 kg {10.58 lbs} (including attachment pipe: Approx. 200g {0.44 lbs}) | ||
| Finish | Main body : Aluminum die cast, Natural silver Sunshields : ABS+PC resin coating, Natural silver Outer fixing screws : SUS (Corrosion-resistant treatment) Dome cover : Polycarbonate resin (with ClearSight coating (rain wash coating)), Clear |
||
iA(intelligent Auto) H.265 PTZ Camera

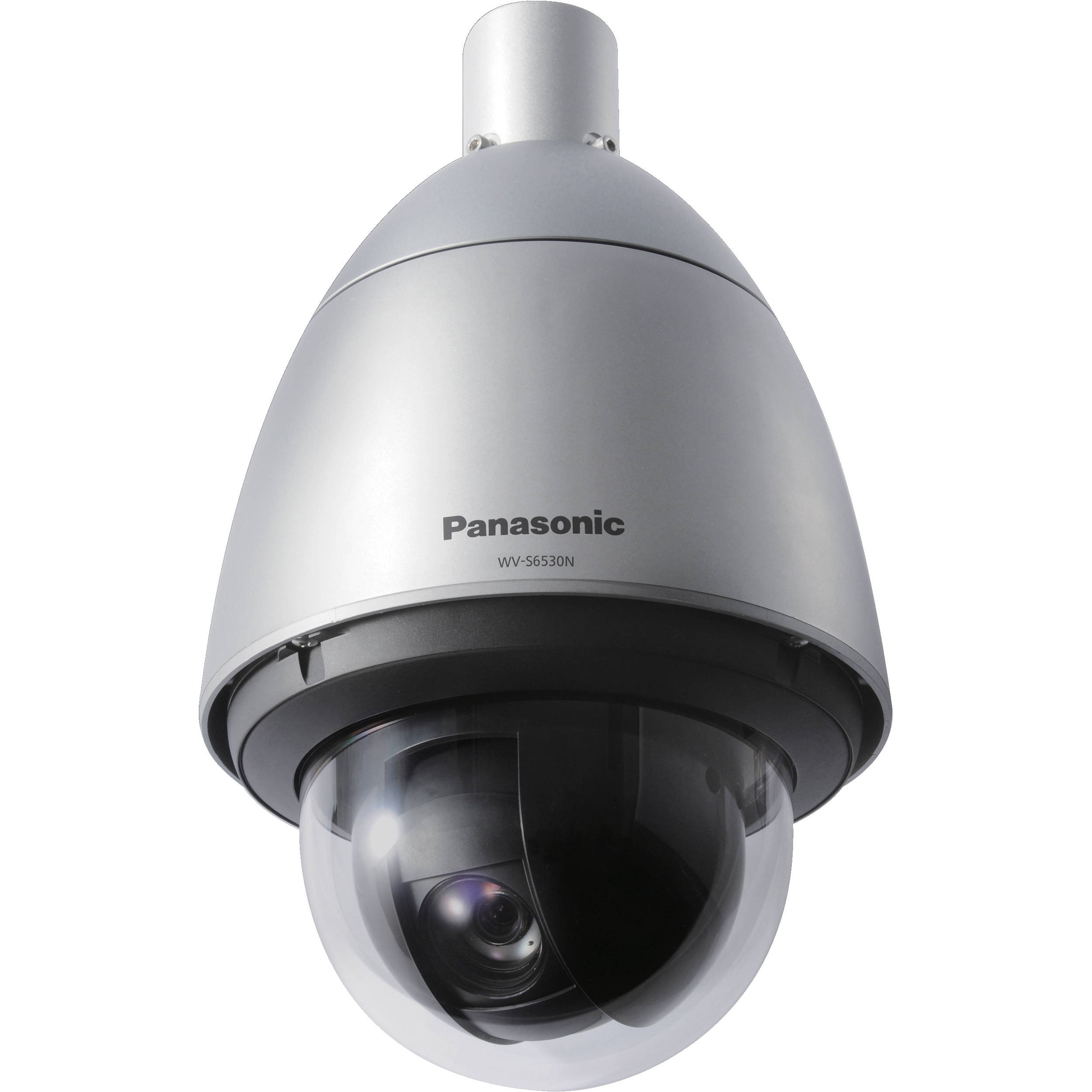

Panasonic WV-S6530N captures the highest quality images automatically even in very challenging and fast-changing surveillance environments. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. New industry-leading 144dB dynamic range delivers balanced scene exposure in dynamic and extreme-backlit lighting environments. In addition, color night vision provides outstanding low-light performance with accurate color rendition and saturation from i-Pro's 1/3" sensor, rivaling the performance of costlier 1/2" sensor cameras in the market. Adopting H.265 Smart Coding technology, intelligently reduces bandwidth efficiency of up to 95%* over H.264 for longer recording and less storage. Cameras out-of-the-box, support full data encryption streaming and is compliant to FIPS 140-2 Level 1 standards to keep your video secured. *Value in Advanced mode. It depends on the scene.
Extreme image quality for evidence capturing under challenging conditions
- Sharp and clear image of fast moving vehicles with Intelligent Auto and ClearSight Coating
- Outstanding low light performance in true color with low noise for night time applications
- Super Dynamic 144dB for backlit situation by headlights and shadows on the streets at night
- Environmental durability: IP66, IK10, Long life Pan/Tilt gear mechanism, Wide operating temperature up to 60 °C (140 °F) and electric dehumidifier
Extreme H.265 compression with new Smart Coding
- Longer recording, less storage compared to H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) dynamically detect motion areas to keep vehicles and human in good picture quality while lowering your bandwidth * Region of Interest
Extreme Data Security
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 Level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
