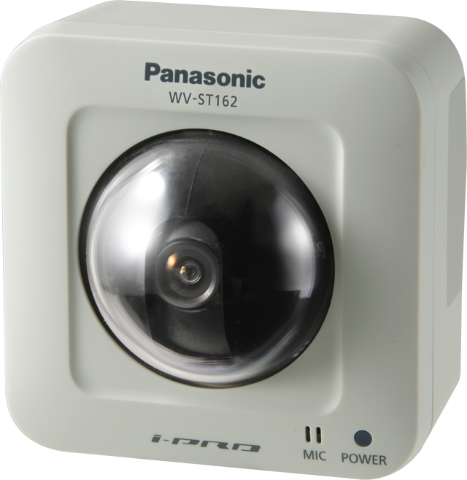

CCTV iPro Panasonic Dome Camera 1.3MP WV-ST162 Wide View
RP. 16,500,000
1.3 Megapixel high sensitivity MOS Sensor
Full frame (Up to 30 fps) transmission at SVGA (800 x 600) image size
Panning/tilting and Preset Map Shot function realizes wide range monitoring.
Face Wide Dynamic Range
High sensitivity with Day & Night (electrical) function: 0.6 lx (Color), 0.5 lx(B/W) at F2.2
H.264 (High profile) dual stream and JPEG output
Power over Ethernet (PoE) IEEE 802.3af
| Image sensor | 1/4 MOS |
| Supported Video Codec | H.264 / JPEG |
| Max. Resolution | SVGA |
| Max. FPS H.264 | 30 |
| WDR | Wide Dynamic |
| Day/Night | Day & Night (electrical) |
| ABF (Auto Back Focus) / Focus Assist | - |
| IR LED | - |
| Min. Illumination Color (lx) | 0.6 |
| Min. Illumination B/W (lx) | 0.5 |
| Lens | f=1.95mm, F2.2 |
| Angular field of view | H: 85 deg. V: 53 deg. |
| Pan/Pan Range | -47.5 - +47.5 deg. |
| Tilt/Tilt Range | -45 - +10 deg. |
| Optical Zoom | - |
| With Extra Zoom | 2x |
| Audio | 2-Way & Built-in MIC |
| External I/O | 2-Mar |
| Vandal Resistant | - |
| Water and Dust Resistance | - |
| Rain Wash Coating | - |
| Analytics | - |
| Temperature (degree, Celsius) Max | 40 |
| Temperature (degree, Celsius) min | 0 |
| Power Source | PoE, 12V DC |
