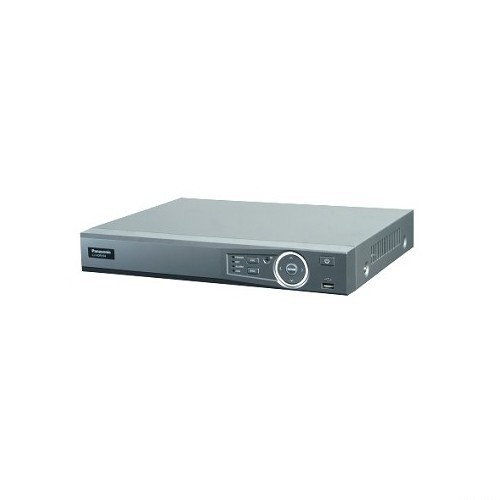

DVR Panasonic Analog 4 channel CJ-HDR104

HD Analog Digital Video Recorder H.264/G.711 Video input : 4CH BNC 1 HDMI 1 VGA 1 SATA port HDD Up to 6 TB (Exclude HDD)

Video Input: 4 CH, BNC
HDCVI: 720p/ 1080p HDCVI
Analog: NTSC/ PAL
Video Output: 1 HDMI, 1 VGA
Audio Input: 1 CH , RCA
Audio Output: 1 CH , RCA
Two-way Talk: Reuse audio input/ output CH 1
Output Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
Multiscreen Mode: 1/4
Privacy Masking: 4 rectangular zones (each camera)
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video/ Audio Compression: H.264/ G.711
Record Rate: main stream 1080P (1~12/15fps)/ 720P/ 960H/ D1 (1~25/30fps); Extra stream CIF/ QCIF (1~25/30fps), D1 (1~12/15fps)
Bit Rate: 96~4096Kb/s
Record Mode: Manual, Schedule (Regular (Continuous), MD), Stop
Record Interval: 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection: Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank
Sync Playback: 1/4
Search Mode: Time/ Date, MD & Exact search (accurate to second)
Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode: USB Device/ Network
Network Interface: RJ-45 port (10/ 100M)
Network Functions: HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access: 128 users
USB Interface: 2 ports (1 Rear), USB2.0
RS485 Camera Interface: 1 port, For PTZ Control
