| Form Factor |
|
| Baterai |
- Battery Type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
|
| Surge Energy Rating |
|
| Voltase Keluar |
- Output Power Capacity : 5000VA / 4500W
- Max Configurable Power : 5000VA / 4500W
- Nominal Output Voltage : 230V
- Output Voltage Distortion : Less than 2%
- Output Frequency (sync to mains) : 50/60 Hz /- 3 Hz
- Other Output Voltages : 220, 240
- Crest Factor : 3 : 1
- Topology : Double Conversion Online
- Waveform Type : Sine wave

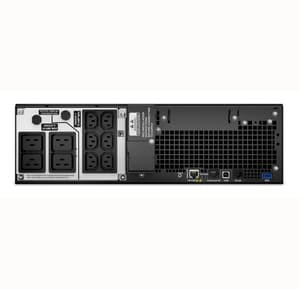

- Output Connections : (6) IEC 320 C13; (4) IEC 320 C19; (2) IEC Jumpers
- Bypass : Internal Bypass (Automatic and Manual)
|
| Voltase Masuk |
- Nominal Input Voltage : 230V
- Input Frequency : 40 - 70 Hz (auto sensing)
- Input Connections : Hard Wire 3 wire (1PH+N+G)
- Input voltage range for main operations : 160 - 275V
- Input voltage adjustable range for mains operation : 100 - 275 (half load)V
- Other Input Voltages : 220, 240
|
| Kelengkapan Paket |
- CD with software; Comms cable; Documentation CD; Installation guide; Removable support feet; Temperature Probe; USB cable; Warranty card; Web/SNMP Management Card
|
| Daya Keluar |
|
| Lain-lain |
- Typical recharge time : 1.50 hour(s)
- Replacement Battery : APCRBC140
- Extended Run Options : APC Smart-UPS SRT 5000VA 230V
- RBC™ Quantity : 1
- Included Battery Modules : 2
- Typical backup time at : 2000 Watt SRT5KXLI : 14 mins
- Typical backup time at : 4000 Watt SRT5KXLI : 5 mins
|
| Antarmuka / Interface |
- Contact Closure
- RJ-45 10/100 Base-T
- RJ-45 Serial
- Smart-Slot
- USB
- Available SmartSlot™ Interface Quantity : 1
|
