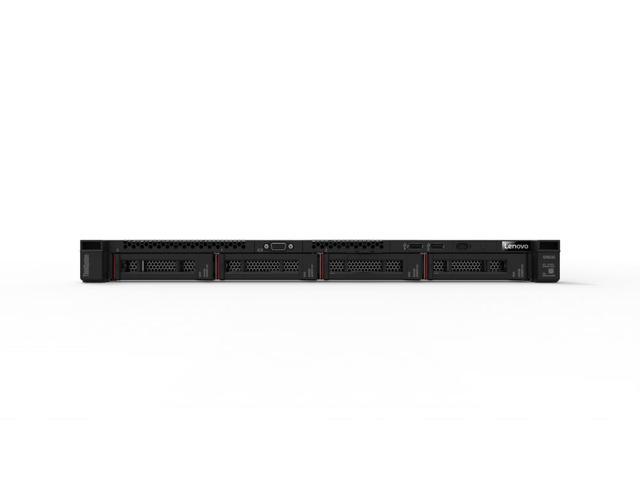

LENOVO THINKSYSTEM SR630 [7X02A00LSG]
RP. 77,533,200
- Intel Xeon Gold 5115 10C 2.4GHz
- 16GB, 4x3.5in SAS/SATA HDD
- RAID 930-8i 2GB
- 10Gb 4-port Base-T LOM
- 1100W p/s
- Rack 1U
| Model | Lenovo ThinkSystem SR630 |
| Processor | Intel Xeon Gold 5115 10C 2.4GHz, 16GB, 4x3.5in SAS/SATA HDD |
| Memory | 16GB |
| Hard Drive | 4x3.5in SAS/SATA HDD |
| Raid Controller | RAID 930-8i 2GB |
| Video Graphic Adapter | Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 16 bits per pixel. |
| Chipset | Intel C624 |
| Operating System | Microsoft Windows Server 2012 R2 and 2016; Red Hat Enterprise Linux 6 (x64) and 7; SUSE Linux Enterprise Server 11 (x64) and 12; VMware vSphere (ESXi) 6.0 and 6.5 |
| Power Supply | Up to two redundant hot-swap 550 W, 750 W, or 1100 W (100 - 240 V) High Efficiency Platinum, or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (China only) |
| Ports | Front: 1x USB 2.0 port with XClarity Controller access. 1x USB 3.0 port. 1x DB-15 VGA port (optional). Rear: 2x USB 3.0 ports and 1x DB-15 VGA port. Optional 1x DB-9 serial port. |
| Form Factor | 1U rack-mount |
